| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Configuration: | SP8T |
|---|
| Reflective / Absorptive: | Reflective |
|---|
| Frequency (GHz): | 0.1 to 12.4 |
|---|
| Frequency Min (GHz): | 0.1 |
|---|
| Frequency Max (GHz): | 12.4 |
|---|
| Insertion Loss (dB): | 4.5 dB Max |
|---|
| Isolation (dB): | 80 dB Min |
|---|
| VSWR In/Out: | 1.75:1 Max |
|---|
| Control: | Ethernet Control, IP address set at factory, IP address configurable through USB interface command structure TBD, command acknowledgements will be sent, status to include switch position. |
|---|
| Power & Control Connector: | Ethernet, USB |
|---|
| Connectors: | N-Type Female |
|---|

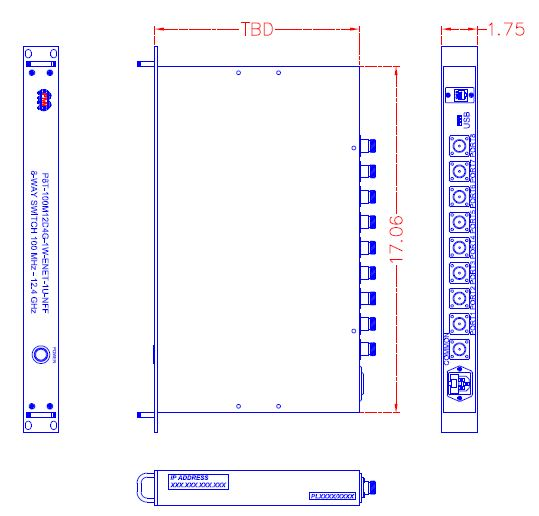

| Size: | 1U 19" Rackmount Chassis,
17.06” x 1.75” x TBD |
|---|
| Finish: | Powder Coated Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -15 °C to +55 °C PER RTCA/DO-160G, SECTION 4, CATEGORY A1 |
|---|
| Non-Operating Temperature: | -55°C to +85°C PER RTCA/DO-160G, SECTION 4, CATEGORY A1 |
|---|
| Humidity: | 95±4% RELATIVE HUMIDITY AT 65±2 C PER RTCA/DO-160G, SECTION 6, CATEGORY B |
|---|
| Altitude: | 35, 000 FT. MAX @ 25°C FOR 2 HOURS PER RTCA/DO-160G, SECTION 4, CATEGORY C2 |
|---|
| SHORT-TIME OPERATING TEMPERATURE: | -40 °C to +70 °C (30 MIN EACH EXTREME) PER RTCA/DO-160G, SECTION 4, CATEGORY A1 |
|---|
| OPERATIONAL SHOCK AND CRASH SAFETY: | 6 g's, 11 ms SAW-TOOTH PER RTCA/DO-160G, SECTION 7, CATEGORY B |
|---|
| CRASH SAFETY, IMPULSE: | 20 g IN ALL AXES PER RTCA/DO-160G, SECTION 7, CATEGORY B |
|---|
| CRASH SAFETY, SUSTAINED: | PER RTCA/DO-160G, SECTION 7, CATEGORY B |
|---|
| VIBRATION, STANDARD: | PER RTCA/DO-160G, SECTION 8, TABLE 8-1, CURVE B3 |
|---|
| RAPID DECOMPRESSION: | 8, 000 FT. EQUIVALENT to 35, 000 FT. IN 15 SECONDS OR LESS PER RTCA/DO-160G, SECTION 4 |
|---|
| EXPLOSIVE ATMOSPHERE: | PER RTCA/DO-160G, SECTION 9, CATEGORY E |
|---|
