| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Configuration: | SP8T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency (GHz): | 0.1 to 18 |
|---|
| Frequency Min (GHz): | 0.1 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Insertion Loss (dB): | 6 dB Typ, 7 dB Max (0.1 to 18 GHz) |
|---|
| Isolation (dB): | 90 dB Typ, 70 dB Min (0.1 to 1 GHz),
90 dB Typ, 65 dB Min (1 to 18 GHz) |
|---|
| Switching Speed: | 50 ns Max |
|---|
| VSWR In/Out: | 2.0:1 Typ, 2.5:1 Max (0.1 to 18 GHz) |
|---|
| Input Power (dBm): | 23 dBm CW Max |
|---|
| Control Signal: | TTL Logic - See Product Feature |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Connectors: | SMA Female |
|---|

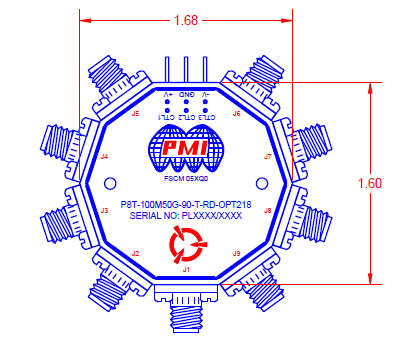

| Size: | 1.60" x 1.68" x 0.40" |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 °C to +85 °C (Operating)
-65 °C to +125 °C (Storage) |
|---|
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
|---|
| Shock: | MIL-STD-202, METHOD 213B COND. B |
|---|
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
|---|
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
|---|
