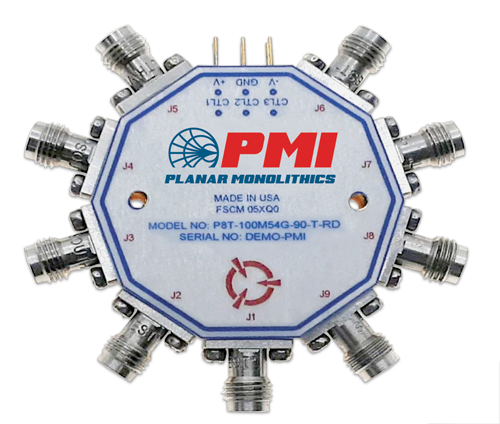

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SP8T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency (GHz): | 0.1 to 54 |
|---|
| Frequency Min (GHz): | 0.1 |
|---|
| Frequency Max (GHz): | 54 |
|---|
| Insertion Loss (dB): | 6 dB (0.1 to 18 GHz),
9 dB (18 to 40 GHz),
16 dB (40 to 50 GHz),
18 dB (50 to 54 GHz) |
|---|
| Isolation (dB): | 90 dB Typ (0.1 to 40 GHz),
80 dB Typ (40 to 50 GHz),
65 dB (50 to 54 GHz) Typ |
|---|
| Switching Speed: | 50 ns Max |
|---|
| VSWR In/Out: | 2.2:1 (0.1 to 18 GHz),
2.5:1 (18 to 40 GHz),
3.5:1 (40 to 50 GHz),
3.5:1 (50 to 54 GHz) |
|---|
| Input Power (dBm): | 20 dBm CW Max |
|---|
| Control Signal: | See TTL Logic Table |
|---|
| Connectors: | 2.4mm Female |
|---|
| Size: | 1.60" X 1.68" X 0.40" |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 °C to +85 °C |
|---|
| Non-Operating Temperature: | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
|---|
| Shock: | MIL-STD-202, METHOD 213B COND. B |
|---|
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
|---|
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
|---|
