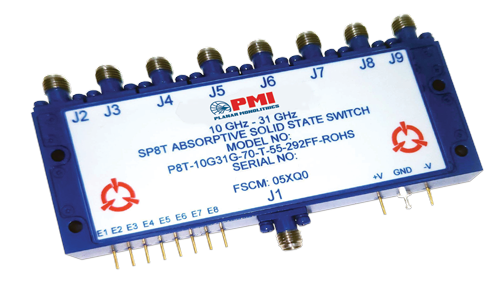

P8T-10G31G-70-T-55-292FF-ROHS Active
High Speed SP8T Absorptive Switch
PMI Model P8T-10G31G-70-T-55-292FF-ROHS is a high speed, single pole, eight throw, absorptive switch capable of switching within 50 ns. The frequency range is 10 to 31 GHz and has over 70 dB of isolation. Package size is 4.0" x 1.5" x 0.4" with 2.92mm female connectors. ROHS and reach compliant.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP8T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 10 to 31 |
| Frequency Min (GHz): | 10 |
| Frequency Max (GHz): | 31 |
| Insertion Loss (dB): | 8 dB Max |
| Isolation (dB): | 70 dB Min |
| Switching Speed: | 50 ns Typ |
| VSWR In/Out: | 2.0:1 Min |
| Operating Input Power: | 20 dBm CW |
| Control Signal: | TTL |
| Power & Control Connector: | Solder Pins |
| Connectors: | 2.92mm Female - removable |
| Size: | 4.0" x 1.5" x 0.4" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -55 °C to +125 °C |
