P8T-2G18G-60-T-515-SMM Active
SP8T Absorptive Switch

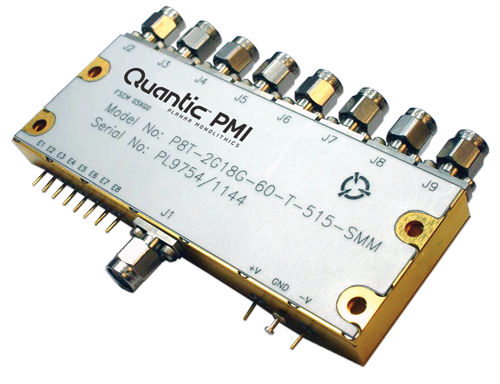

Quantic PMI Model P8T-2G18G-60-T-515-SMM is a high speed, single pole, eight throw, absorptive switch capable of switching within 100 ns wiyj a frequency range of 2 to 18 GHz and has over 60 dB of isolation. This model can handle an operating power level of 30 dBm (1 W). Housing is gold plated and measures 4.0" x 1.5" x 0.4" with SMA male connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP8T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 2 to 18 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 4.5 dB Max |
| Insertion Loss - Typ (dB): | 4.5 dB |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB |
| Switching Speed: | 100 ns Typ |
| Switching Speed - Typ: | 100 ns |
| VSWR In/Out: | 2.0:1 Max |
| Input Power (dBm): | 30 dBm CW (1 W) |
| Power Supply: | +5 VDC @ 400 mA, -15 VDC @ 200mA |
| Control Signal: | Eight Line TTL TTL Logic "0" = Low Loss TTL Logic "1" = Isolation E1 Controls J1 to J2 E2 Controls J1 to J3 E3 Controls J1 to J4 E4 Controls J1 to J5 E5 Controls J1 to J6 E6 Controls J1 to J7 E7 Controls J1 to J8 E8 Controls J1 to J9 |
| Control: | Solder Pins |
| Connectors: | SMA Male |
| Size: | 4.0" x 1.5" x 0.4" |
| Finish: | Gold |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -54 ºC to +95 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
