P8T-2G18G-60-T-SFF-NSI Active
SP8T Absorptive Switch Module

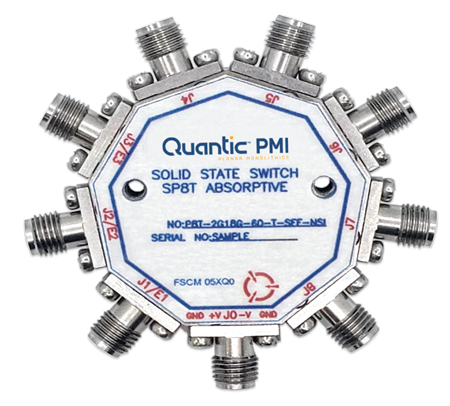

Quantic PMI Model P8T-2G18G-60-T-SFF-NSI is a single pole, eight throw, absorptive switch module with low loss, high speed and with integral TTL driver, designed for broadband operations 2 to 18 GHz that has an insertion loss of 2.5 dB maximum at 2 GHz, 4.5 dB maximum at 18 GHz; isolation 60 dB minimum; VSWR 2.0:1 maximum; RF input power 20 dBm; switching speed 100 ns; Insertion Loss Flatness/1 GHz of ±0.5 dB maximum and IIP3 of 30 dBm. Package size is ø1.5" x 0.4" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP8T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 2 to 18 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 2.5 dB Max (2 to 6 GHz), 3.5 dB Max (6 to 12 GHz), 4.5 dB Max (12 to 18 GHz) |
| Isolation (dB): | 60 dB Min |
| Switching Speed: | 100 ns Max |
| VSWR In/Out: | 2.0:1 Max (On In/Out) 2.0:1 Max (Absorptive Out/Off) |
| Power Supply: | +5 VDC @ 300 mA Max -5 VDC @ 100 mA Max |
| Impedance: | 50 Ohm |
| Insertion Loss Flatness / 1 GHz: | ±0.5 dB Max |
| RF Input Power: | 20 dBm Max |
| IP3: | 30 dBm Typ |
| Control: | 3 Bit TTL Logic |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | Ø1.5" circle point-to-point x 0.4" |
| Finish: | Painted Blue |
| Weight: | 2.5 oz Typ |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | 0 °C to +60 °C |
| Non-Operating Temperature: | -65 °C to +125 °C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
