P8T-500M40G-50-T-55-SFF Active

High-Speed, SP8T Absorptive Switch

P8T-500M40G-50-T-55-SFF
Product Feature

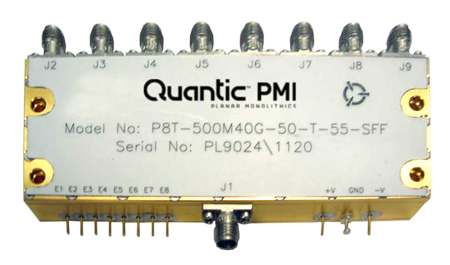

Quantic PMI Model P8T-500M40G-50-T-55-SFF is a high speed, single pole, eight throw, absorptive switch capable of switching within 50 ns with a frequency range of 0.5 to 40 GHz and has over 50 dB of isolation. Housing is gold plated and measures 4.0" x 1.5" x 0.4" with 2.92mm female connectors.

Product Specifications

General Parameters:
Status: Active
Configuration: SP8T
Reflective / Absorptive: Absorptive
Frequency (GHz): 0.5 to 40
Frequency Min (GHz): 0.5
Frequency Max (GHz): 40
Insertion Loss (dB): 10 dB Max
Insertion Loss - Typ (dB): 10 dB
Isolation (dB): 50 dB Min
Isolation - Typ (dB): 50 dB
Switching Speed: 50 ns Typ
Switching Speed - Typ: 50 ns
VSWR In/Out: 3.0:1 Typ - Measured 2.38:1
Input Power (dBm): 20 dBm CW
Power Supply: +5 VDC @ 70 mA - Measured @ 65 mA,
-5 VDC @ 20 mA - Measured @ 17 mA
Control Signal: Eight Line TTL
Power & Control Connector: Solder Pins
Connectors: 2.92mm Female
Size: 4.0" x 1.5" x 0.4"
Finish: Gold
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -54 ºC to +95 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
