| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Configuration: | SP8T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency (GHz): | 0.05 to 40 |
|---|
| Frequency Min (GHz): | 0.05 |
|---|
| Frequency Max (GHz): | 40 |
|---|
| Insertion Loss (dB): | 10 dB Max,
6 dB Typ (0.1 to 18 GHz),
7 dB Typ (18 to 26.5 GHz),
9.5 dB Typ (26.5 to 40 GHz) |
|---|
| Isolation (dB): | 80 dB Min (0.1 to 18 GHz),
70 dB Min (18 to 26.5 GHz),
60 dB Min (26.5 to 40 GHz) |
|---|
| Switching Speed: | 100 ns Max |
|---|
| VSWR In/Out: | 2.5:1 Typ |
|---|
| Power Supply: | +5 VDC @ 250 mA
-12 VDC @ 100 mA |
|---|
| Operating Input Power: | 20 dBm CW |
|---|
| Control Signal: | Eight Line TTL
"0" Insertion Loss
"1" Isolation |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Connectors: | 2.92mm Female |
|---|

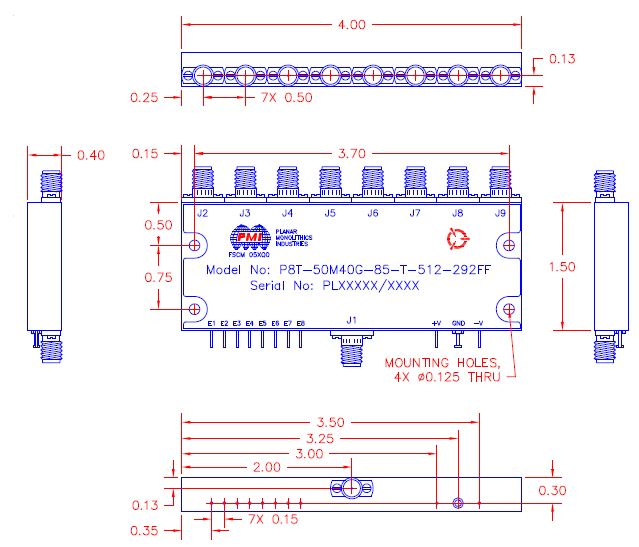

| Size: | 4.0" x 1.5" x 0.4" |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -54 °C to +95 °C |
|---|
| Non-Operating Temperature: | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
