P8T-8G12D4G-60-T-512-SFF Preliminary
SP8T Absorptive Switch

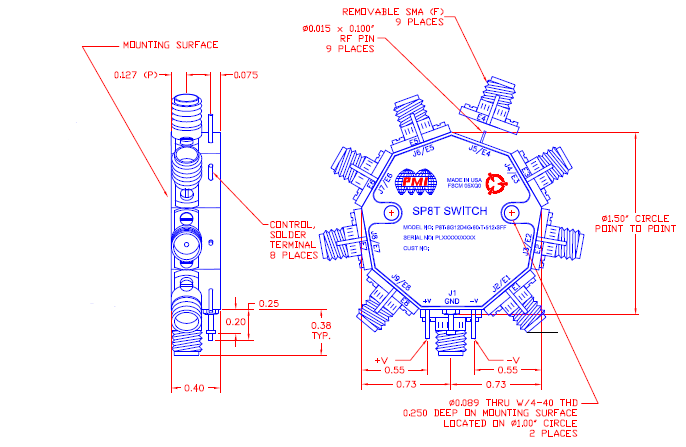

Quantic PMI Model P8T-8G12D4G-60-T-512-SFF is a single pole, eight throw, absorptive/non-reflective switch module with low insertion loss, high isolation and an integral TTL driver designed for 8 to 12.4 GHz operation. Housing measures Ø1.5" circle point-to-point x 0.4" with removable SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP8T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 8 to 12.4 |
| Frequency Min (GHz): | 8 |
| Frequency Max (GHz): | 12.4 |
| Insertion Loss (dB): | 4 dB Typ |
| Insertion Loss - Typ (dB): | 4 dB |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB |
| Switching Speed: | 500 ns |
| VSWR In/Out: | 2.0:1 Max |
| Phase Matching: | ±10° Port to Port Max |
| Input Power (dBm): | 23 dBm CW (Operating) |
| Rise/Fall Time: | 500ns Max, 300ns Typ |
| Power Supply: | +5 VDC @ 500 mA Max, -12 VDC @ 100 mA Max |
| Control Signal: | TTL Logic, "0" = On, "1"= Off |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female - removable |
| Size: | Ø1.5" Circle Point to Point X 0.4" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
