PA-218-45-5-10W-22V-SFF Active
2-18 GHz - 10W SSPA

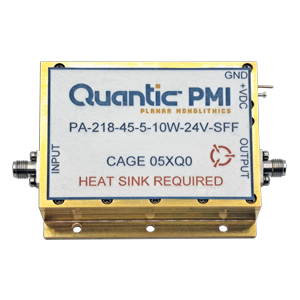

Quantic PMI Model PA-218-45-5-10W-22V-SFF is a 2 to 18 GHz solid state power amplifier (SSPA) that offers a 38 to 45 dB gain with a noise figure of 5.5 dB maximum, a gain flatness of ±2.5 dB and a saturated output power of 10 W minimum. Package size is 2.88" x 2.5" x 0.67" (excluding connectors) with removable SMA female connectors allowing for use as either a connectorized or surface mount component.
Same performance as PA-218-45-5-10W-24V-SFF, operating on +22 VDC vs +24 VDC
https://www.pmi-rf.com/product-details/pa-218-45-5-10w-24v-sff
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Gain (dB): | 48 dB Min, 38 dB Max |
| Psat: | 10 W Min |
| Input Power: | 20 dBm CW Max |
| Input VSWR: | 2.0:1 Max |
| Output VSWR: | 2.2:1 Max |
| Noise Figure: | 5.5 dB Max |
| Gain Flatness: | ±2.5 |
| Current Supply: | 3.6 A Max (No RF Signal) 4.5 A Max (Psat) |
| Power Output: | 10 W Min |
| Max Input Power: | 23 dBm Max |
| DC Supply Voltage: | +22 VDC |
| DC Connectors: | DC Pin |
| RF Connectors In/Out: | SMA Female |

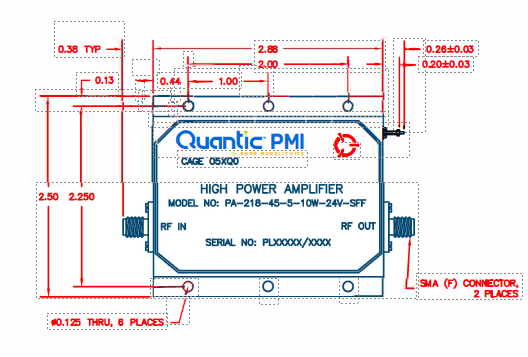

| Size (Excluding Connectors): | 2.88" x 2.5" x 0.67" |
| Finish: | Gold Finish |
| Export Classification (ECCN): | 3A001.b.4.a |
| Environmental Ratings: | |
| Operating Temperature: | -55 °C to +85 °C |
| Non-Operating Temperature: | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202F, METHOD 107D COND. A |
