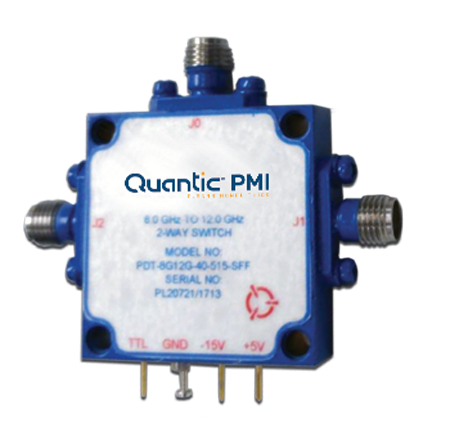

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SP2T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency Range (GHz): | 8 to 12 |
|---|
| Frequency Min (GHz): | 8 |
|---|
| Frequency Max (GHz): | 12 |
|---|
| Insertion Loss (dB): | 2 dB Max |
|---|
| Insertion Loss - Typ (dB): | 2 dB Max (8 to 10 GHz), 2.3 dB Max (10 to 12 GHz) |
|---|
| Isolation (dB): | 40 dB Min - Measured 44.5 dB |
|---|
| Isolation - Typ (dB): | 40 dB |
|---|
| Input Power (dBm): | 40 dBm CW, 57 dBm, 1 µs, 1% Duty Cycle |
|---|
| Switching Speed: | 200 ns Max - Measured 196 ns |
|---|
| Switching Speed (Typ): | 200 ns |
|---|
| Power Supply: | +5 VDC @ 100 mA - Measured 50 mA
-15 V @ 60 mA - Measured 0 mA |
|---|
| VSWR In/Out: | 1.8:1 Max - Measured 1.52:1 |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 1.25” x 1.25” x 0.30” |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -54 ºC to +95 ºC |
|---|
| Temperature (Storage): | -65 ºC to +125 ºC |
|---|
| Shock: | MIL-STD-202, METHOD 213, COND J, 20 G (DURING OPERATION) &12 5g, 6 ms saw tooth type, 3-AXIS (No operation) |
|---|
| Vibration: | MIL-STD-202, METHOD 214, COND A, 12 G 30 MIN, X, Y, Z-AXIS (DURING OPERATION) & 20 G 30 min, X, Y, Z-AXIS (During operation) |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond B, 200 Km (8.57e-7 hPa or 6.353e-7 torr/during operation) |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond A |
|---|
