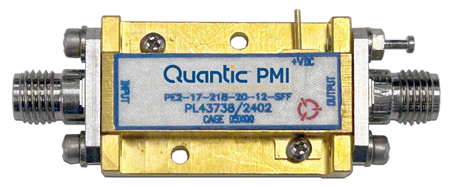

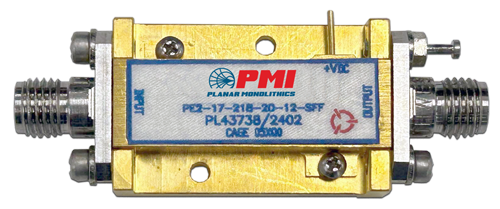

PE2-17-218-20-12-SFF Active

Low Noise Amplifier

PE2-17-218-20-12-SFF
Product Feature

Quantic PMI Model PE2-17-218-20-12-SFF is a 2 to 18 GHz low noise amplifier with a gain of 17 dB; 4.5 dB noise figure; gain flatness is ±1.75 dB;  and a OP1dB of 20 dBm. Supplied in our PE2  housing that can be used as an SMA connectorized or surface mounted component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 2 to 18
Frequency Min (GHz): 2
Frequency Max (GHz): 18
Gain (dB): 17 dB Typ
Gain Flatness: ±1.75 dB Max
Noise Figure (dB): 4.5 dB Max
OP1dB (dBm): 20 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 300 mA Max
Input Power: 23 dBm Max
Connectors: SMA Female - removable
Size: 1.08" x 0.71" x 0.29"
Housing: PE2
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 °C to +85 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B Cond B
Shock: MIL-STD-202F, Method 213B Cond B
Altitude: MIL-STD-202F, Method 105C Cond B
Temperature Cycle: MIL-STD-202F, Method 107D Cond A
