PE2-18-23G25G-292FF Preliminary
Low Noise Amplifier
Buy Now
PMI Model number PE2-18-23G25G-292FF is a 23 to 25 GHz low noise amplifier featuring S21 >0 dB only between 10 and 45 GHz, 0.7 dB gain flatness, 23 dBm OP1dB, noise figure of 4 dB, and 23 dBm maximum input power. Supplied in our standard PE2 housing with removable SMA connectors that can be used as a connectorized or surface mount component.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 23 to 25 |
| Frequency Min (GHz): | 23 |
| Frequency Max (GHz): | 25 |
| Gain Flatness (dB): | 0.75 dB Max |
| Noise Figure (dB): | 4 dB Typ |
| Input VSWR: | 2.0:1 Max |
| Output VSWR: | 2.0:1 Max |
| OP1dB (dBm): | 23 dBm Typ |
| OIP3: | 36 dBm Typ |
| RF Input Power: | 25 dBm CW Max |
| Small Signal Gain: | 18 dB Min @ 24 GHz |
| Connectors: | 2.92mm Female - removable |

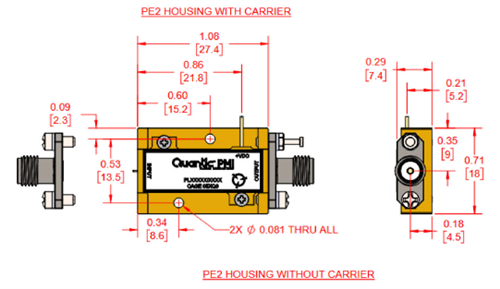

| Size: | 1.08" x 0.71" x 0.29" |
| Housing: | PE2 |
| Finish: | Gold Plated |
| Weight: | 2.75 oz |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +85 °C |
| Temperature (Non-Operating): | -55 °C to +125 °C |
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
| Shock: | MIL-STD-202, METHOD 213B COND. B |
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
