PE2-20-2D8G3D2G-LPF-SFF Preliminary
Low Noise Amplifier
Buy Now
PMI Model PE2-20-2D8G3D2G-LPF-SFF is a 2.8 to 3.2 GHz Low Noise Amplifier featuring S21 >0 dB only between 0 and 8 GHz, 0.75 dB gain flatness, 27 dBm OP1dB, noise figure of 3.2 dB and 17 dBm maximum input power. Supplied in our standard PE2 housing with removable SMA connectors that can be used as a connectorized or surface mount component.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 2.8 to 3.2 |
| Frequency Min (GHz): | 2.8 |
| Frequency Max (GHz): | 3.2 |
| Gain Flatness (dB): | 0.75 dB Max |
| Noise Figure (dB): | 3.2 dB Typ |
| Input VSWR: | 2.0:1 Max |
| Output VSWR: | 2.0:1 Max |
| OP1dB (dBm): | 27 dBm Typ |
| OIP3: | 38 dBm Typ |
| Small Signal Gain: | 15 dB Min @ 3 GHz |
| Input Power: | 17 dBm CW Max |
| Connectors: | SMA Female - removable |

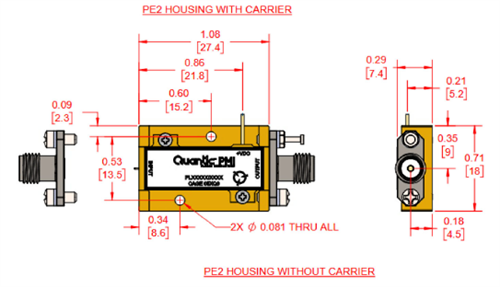

| Housing: | PE2 |
| Finish: | Gold Plated |
| Weight: | 2.75 oz. |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +85 °C |
| Temperature (Non-Operating): | -55 °C to +125 °C |
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
| Shock: | MIL-STD-202, METHOD 213B COND. B |
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
