PEC-20M3G-3T-SFF-LV-ROHS Active
SP3T Non-Reflective Switch
Additional Documents
- Product Feature
- Test Report - 3/26/22
- S- Parameters
- PL36444 - Unit Data
- PL36444-1 - Unit Data
- PL36445 - Unit Data
- PL36445-1 - Unit Data
- PL36446 - Unit Data
- PL36447 - Unit Data
- PL36448 - Unit Data
- PL44312 - Unit Data
- PL44313 - Unit Data
- PL44314 - Unit Data
- PL44315 - Unit Data
- PL44316 - Unit Data
- PL44317 - Unit Data
- PL44318 - Unit Data
- PL44319 - Unit Data
- PL44995 - Unit Data
- PL44996 - Unit Data
- PL44997 - Unit Data
- PL44998 - Unit Data
- PL44999 - Unit Data
- PL45000 - Unit Data
- PL45001 - Unit Data
- PL45002 - Unit Data
- PL50771 - Unit Data
- PL50772 - Unit Data
- PL50773 - Unit Data
- PL52460 - Unit Data
- PL52461 - Unit Data
- PL52462 - Unit Data
- PL52463 - Unit Data
- PL52464 - Unit Data

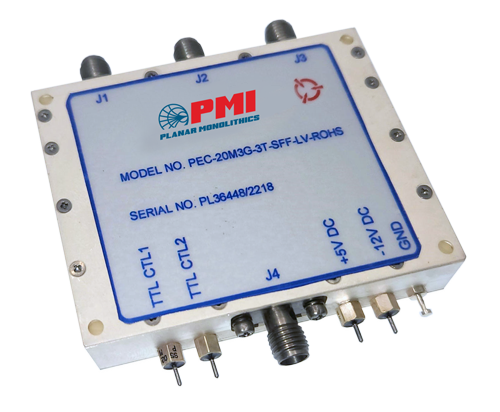

PMI Model PEC-20M3G-3T-SFF-LV-ROHS is a single pole, three throw, non-reflective switch designed to operate over the 0.02 to 3 GHz. This model offers ultra-low video transients in a housing measuring is 2.5" x 1.9" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP3T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.02 to 3 |
| Frequency Min (GHz): | 0.02 |
| Frequency Max (GHz): | 3 |
| Insertion Loss (dB): | 2 dB (0.02 to 1 GHz), 2.5 dB (1 to 2 GHz), 4 dB (2 to 3 GHz) |
| Insertion Loss - Typ (dB): | 2 dB |
| Isolation (dB): | 70 dB Min (0.02 to 1 GHz), 60 dB Min (1 to 2 GHz), 50 dB Min (2 to 3 GHz) |
| Isolation - Typ (dB): | 70 dB |
| VSWR In/Out: | 2.0:1 Max |
| Video Transient: | Above 20 MHz -100 dBm, Below 20 MHz -75 dBm |
| Power Supply: | +5 VDC @ 250 mA Max, -12 VDC @ 120 mA Max |
| EMI / EMC: | MIL-STD-461E |
| Connectors: | SMA Female |
| Size: | 2.5" x 1.9" x 0.5" |
| Finish: | Silver Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -45 ºC to +90 ºC |
| Non-Operating Temperature: | -54 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Salt Fog: | MIL-STD-202F, Method 101D+EST Cond. B |
| Fungus: | MIL-STD-810F, Method 508.5 |
