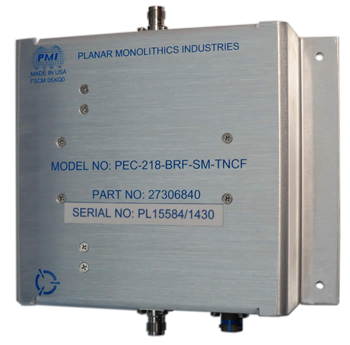

| General Parameters: |
|---|
| Status: | Active |
|---|
| No of Filter Channels: | 2 |
|---|
| Operating Frequency (GHz): | 2 to 18 GHz |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Isolation (dB): | 70 dB Typ |
|---|
| Insertion Loss (dB): | 2.5 dB (thru Path),
4 dB (Filter Path) |
|---|
| DC Voltage: | +28 VDC |
|---|
| VSWR: | 2.0:1 Max |
|---|
| -3 dB Passband Cutoff Frequency: | 4 and 4.6 GHz |
|---|
| Rejection: | -60 dB Min at 4.2 to 4.4 GHz |
|---|
| Connectors: | RF: TNC Female
Power & Control: MIL-C-26482 series or equivalent |
|---|
| Size: | 8.0" x 6.0" x 2.0" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond B |
|---|
| Temperature Cycle: | MIL-STD-202F Method 107D Cond A |
|---|
