PEC-2D35G-100W-SFF-SPDT Active
High Power SP2T Switch
Quantic PMI Model PEC-2D35G-100W-SFF-SPDT is a high power, single pole double throw Switch capable of handling 100 Ws. The frequency range is 2.2 to 2.5 GHz.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP2T |
| Reflective / Absorptive: | Reflective |
| Frequency Range (GHz): | 2.2 to 2.5 |
| Frequency Min (GHz): | 2.2 |
| Frequency Max (GHz): | 2.5 |
| Insertion Loss (dB): | 2.5 dB Typ, 3 dB Max |
| Insertion Loss - Typ (dB): | 2.5 dB |
| Isolation (dB): | 40 dB Min - Measured 63 dB |
| Isolation - Typ (dB): | 40 dB |
| Input Power (dBm): | 100 W Max (Hot Switching without damage) |
| Switching Speed: | 100 ns goal, 350 ns Max. - Measured 150 ns |
| Switching Speed (Typ): | 150 ns |
| Power Supply: | +12 VDC and -28 VDC |
| VSWR In/Out: | 1.5:1 Max - Measured 1.45:1 |
| Connectors: | SMA Female |

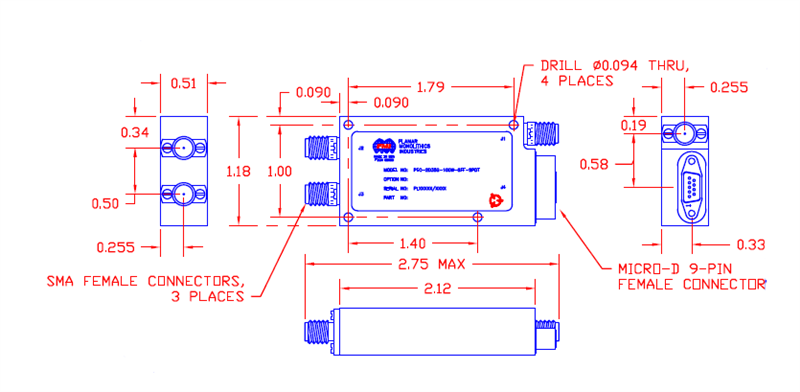

| Size: | 2.75" x 1.18" x 0.51" |
| Finish: | Hermetically Sealed, Aluminum 6061-T6 Housing with Aluminum 4047 Covers, Painted Blue |
| Weight: | < 8.1 oz. |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Storage): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-810F, Method 507.4 |
| Shock: | MIL-STD-810F, Method 516.5 |
| Vibration: | MIL-STD-810F, Method 514.5 |
| Altitude: | MIL-STD-810F, Procedure II |
| Temperature Cycle: | MIL-STD-810F, Method 503.4, Procedure I |
