PEC-40-25-0R518-20-12-SFF-TTLVG

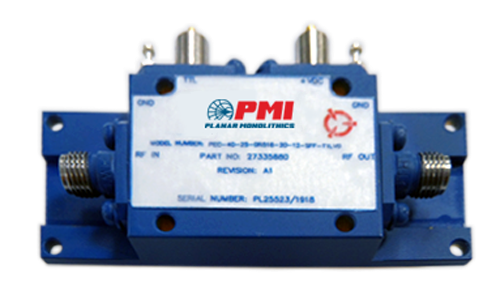

PMI Model No. PEC-40-25-0R518-20-12-SFF-TTLVG is a Dual Gain Amplifier operating over the frequency range of 0.5 to 18.0 GHz. It has a maximum VSWR of 2.0:1 and an input power of +20 dBm CW. This unit is outfitted with SMA female connectors in a housing that measures 2.54" x 1.00" x 0.383".

Product Specifications

General Parameters:
Status: Active
Frequency Min: 0.5 GHz
Frequency Max: 18.0 GHz
VSWR In/Out: 2.0:1 Max
OP1dB: Max Gain Position: +19 dB Min
Min Gain Position: +17 dB Min
Noise Figure: Max Gain Position: +5.0 dB Max*
Min Gain Position: +7.5 dB Max*
* = Above 1.0 GHz
Frequency Range: 0.5 to 18.0 GHz
DC Voltage Supply: 780 mA Max @ +12 V ± 5% Max Gain Position
610 mA Max @ +12 V ± 5% Min Gain Position
Input/Output Impedance: 50 Ohms nominal
Input Power (Without Damage): +20 dBm CW Max
In-Band Harmonics @ or Below the 1 dB Compression Point: -10 dBc Typ
Pulse Rise Time with input signals up to 20 dBm: <5 ns
Pulse Overshoot with input signals up to 20 dBm: <0.5 dB
Gain Switching Time: <500 ns
Gain Switch Control: TTL High "1" - Max Gain
TTL Low "0" - Min Gain
Finish: Painted Blue
Size: 2.54" X 1.0" X 0.353"
Connectors In/Out: SMA (F) Removalable
Pout @ 1 dB Compression @ +25ºC: Max Gain Position: +19 dB Min
Min Gain Position: +17 dB Min
Sealing: Epoxy Sealed
Gain @ +25ºC: Max Gain Position: +38 dB ±4 dB Max
Min Gain Position: +23 dB ±4 dB Max
Noise @ +25ºC: Max Gain Position: +5.0 dB Max*
Min Gain Position: +7.5 dB Max*
* = Above 1.0 GHz
Pulse Droop (250 us pulse width): <2.0 dB
Spurious Output Signal (upto max): -80 dBc Max
Saturated Output Power (Both Gains): +25 dBm Typ
Pulse Recovery (250 us pulse width): 15 ns
Environmental Ratings:
Temperature: -55 ºC to +85 ºC Operating
-55 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
