PEC3-40-2G6G-15LM-SFF-HS

Buy Now

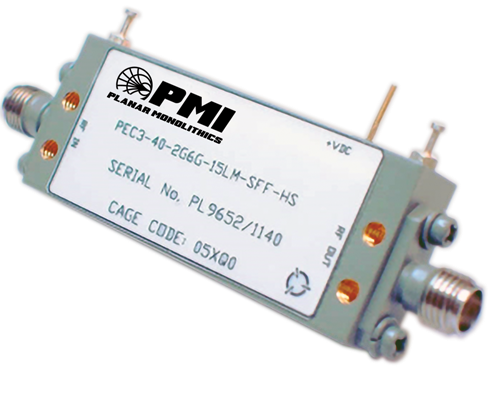

PMI Model No. PEC3-2G6G-15LM-SFF-HS is a 1.85 to 6.25 GHz limiting amplifier. This model operates with an input power range of -15 to +17 dBm and maintains a limited output of +15 dBm minimum. The unit is supplied in a hermetically sealed housing. [Other frequency ranges and limited output levels available.]

Product Specifications

General Parameters:
Status: Active
Frequency Range: 1.85 to 6.25 GHz
Frequency Min: 1.85 GHz
Frequency Max: 6.25 GHz
Input Power: -15 to +17 dBm
Input VSWR: 2.0:1 Max
Gain: 35 dB Min
Gain Flatness: ±2.5 dB Max - Full Frequency Range,
±2.0dB Max - Over any 500 MHz
Linear Gain Variation Over Operating Frequency Range: 4.0 dB Max (-55 ºC to +85 ºC)
Noise Figure: 5.5 dB Max @ +25 ºC,
6.0 dB Max @ +85C
Harmonics: -15 dBm Min
Sealing: Hermetic
Saturated Output Power: 15 dBm Min
Saturated Power Flatness: ±1.5 dB Max - At any operating temperature,
±0.5 dB Max - Over any 500 MHz
Reverse isolation: 50 dB Min
Pulse Response Overshoot: 0.2 dB Max
Pulse Response Settling Time: 10 ns Max
Pulse Response Recovery Time: 50 ns Max
Maximum Input Power: +20 dBm CW, +30 dBm,
.005 Duty Cycle, 1 µs
Output Power: +15 dBm Min
DC Voltage Supply: 10.8 to +13.2 VDC
DC Current Draw: 350 mA Max
Size: 1.91" x 0.78" x 0.36"
Connectors: SMA (F)
Environmental Ratings:
Temperature: -55 ºC to +85 ºC
Non-Operating: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
