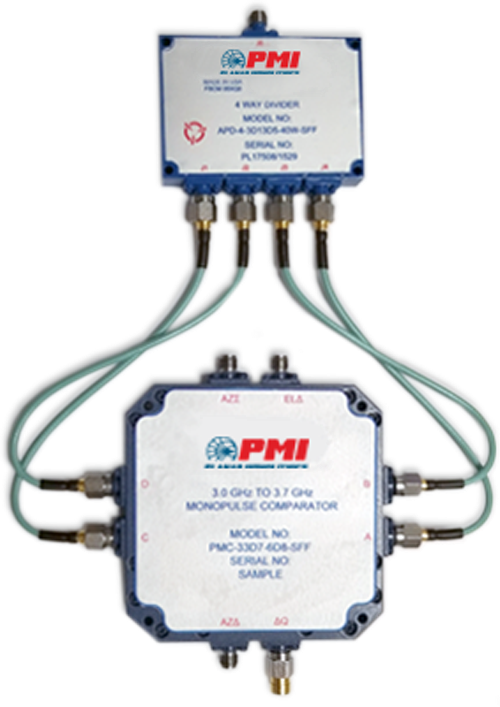

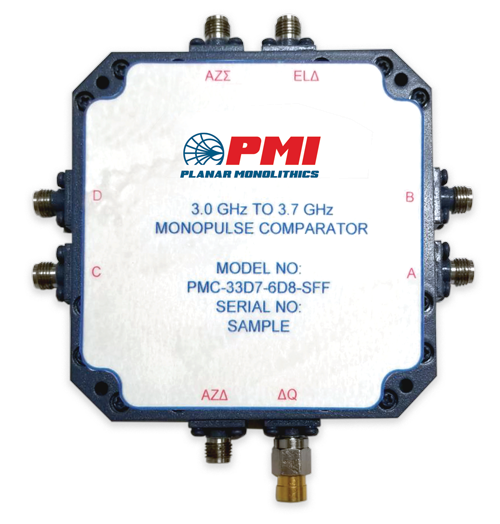

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Min: | 3.0 GHz |
|---|
| Frequency Max: | 3.7 GHz |
|---|
| Phase Balance: | ±7° |
|---|
| Insertion Loss: | 0.8 dB Max (If input signals at ports A, B, C and D are equal Amplitude or Power & Inphase with an output at Port AZS)
6.8 dB Max (If input signals at port A, B, C, or D and all other ports are terminated to 50 Ohms with an output at ports, Ports EL Delta, AZ Sigma, AQ or AZ Delta) |
|---|
| Isolation: | 24 dB Min |
|---|
| Frequency: | 3.0 to 3.7 GHz |
|---|
| Amplitude Balance: | ±0.5 dB Max |
|---|
| VSWR: | 1.3:1 Max |
|---|
| Impedance: | 50 Ohms |
|---|
| Power Handling: | Average: 10 Watt Max (Ports A, B, C & D)
Peak: 0.1 kW Max |
|---|
| Connectors: | SMA Female |
|---|
| Finish: | Painted Blue |
|---|
| Size: | 3.23" x 3.23" x 0.43"
82 mm x 82 mm x 11 mm |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -55 °C to +85 °C (Operating)
-65 °C to +125 °C (Storage) |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
