General Parameters: |

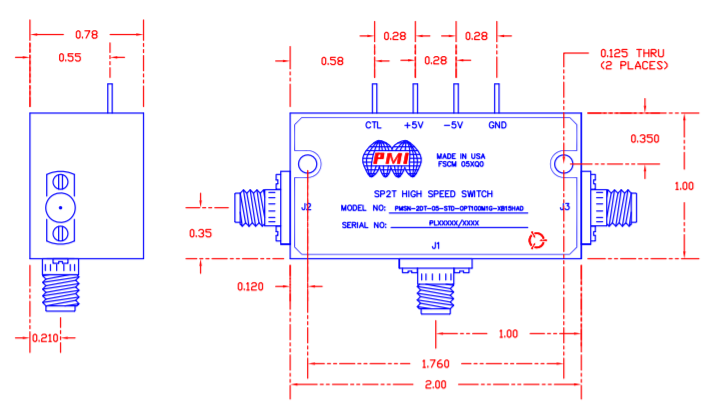

Status: | Preliminary |
Frequency Min: | 0.1 GHz |
Frequency Max: | 1 GHz |
Insertion Loss (Typ): | 1 dB |
Isolation (Typ): | 60 dB |
Reflective / Absorptive: | Absorptive |
Switching Speed (Typ): | 15 nsec |
Frequency: | 0.1 to 1.0 GHz |
Configuration: | SP2T |
Isolation: | 60dB min. |
Insertion Loss: | 1.0dB max |
VSWR In/Out: | 1.70:1 max |
Input Power: | +20dBm CW max |
Survival Power: | 1W CW or 10W Peak 1usec PW |
Switching Speed: | Rise: 15ns max, Fall: 15ns max, Delay On: 100ns max, Delay Off: 100ns max |
Control Signal: | TTL Logic, "0" = J1 to J2 "Low Loss", "1" = J1 to J3 "Low Loss" |
Power Supply: | +5VDC @ 100 mA max, -5VDC @ 100mA max |
Connectors: | SMA(F) |
Power & Control Connector: | Solder Pins |
Finish: | Painted Blue |
Environmental Ratings: |
Temperature (Operating): | -55 to +85 ºC |
Temperature (Storage): | -65ºC to +125ºC |
Humidity: | MIL-STD-202F, Method 103B Cond B |
Shock: | MIL-STD-202F, Method 213B Cond B |
Vibration: | MIL-STD-202F, Method 204D Cond B |
Altitude: | MIL-STD-202F, Method 105C Cond B |
Temperature Cycle: | MIL-STD-202F, Method 107D Cond A |
