PMSN-4DT-05-DEC-MP-OPT600M6G Active
SP4T Absorptive Switch
Additional Documents

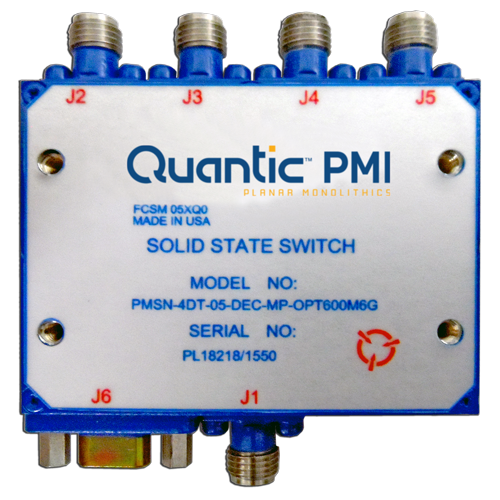

Quantic PMI Model PMSN-4DT-05-DEC-MP-OPT600M6G is an Absorptive, Single Pole, Four Throw Pin Diode Switch that operates over the 0.6 to 6 GHz frequency range and incorporates a TTL compatible driver for easy system integration. Housing size is 2.0" x 1.5" x 0.4" and is outfitted with a 9 pin micro-D connector for power and SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.6 to 6 |
| Frequency Min (GHz): | 0.6 |
| Frequency Max (GHz): | 6 |
| Insertion Loss (dB): | 3.5 dB Typ, 3.75 dB Max |
| Insertion Loss - Typ (dB): | 3.5 dB |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB |
| Switching Speed: | 10 ns Typ, 15 ns Max, (Rise/Fall Time) 75 ns Typ, 100 ns Max (Delay On/Off) |
| Switching Speed - Typ: | 100 ns |
| Rise/Fall Time: | 10 ns Typ, 15 ns Max |
| Delay On/Off: | 75 ns Typ, 100 ns Max, 75 ns Typ, 100 ns Max |
| VSWR In/Out: | 2.0:1 (In/Out) - Measured 1.4:1 |
| Input Power: | 20 dBm CW Operating |
| Survival Power: | 1 W CW, 10 W Peak 1 µs |
| Power Supply: | +5 VDC @ 200 mA Max, -5 VDC @ 100 mA Max |
| Control Signal: | TTL |
| Power & Control Connector: | 9 Pin Micro D male, (Mating Connector Supplied) |
| Connectors: | SMA Female |
| Size: | 2.0" x 1.5" x 0.4" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond A |
