PMSN-4DT-05-STD-OPT28-80ISO-TB458 Preliminary
SP4T Absorptive Switch

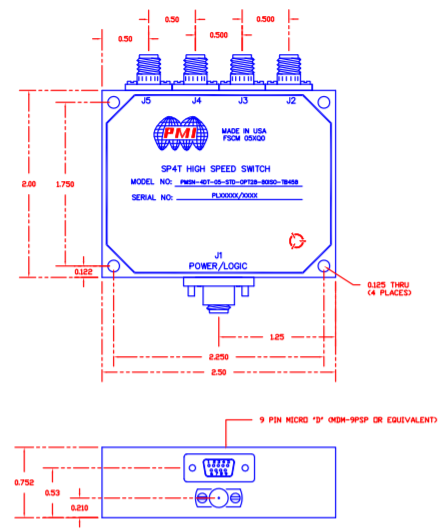

Quantic PMI Model PMSN-4DT-05-STD-OPT28-80ISO-TB458 is an absorptive, single pole, four throw, pin diode switch that operates over the 2 to 8 GHz frequency range and incorporates a TTL compatible driver for easy system integration. Housing size is 2.5" x 2.0" x 0.752" and is outfitted with a 9 pin micro-D connector for power and SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 2 to 8 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 8 |
| Insertion Loss (dB): | 1.6 dB Max |
| Insertion Loss - Typ (dB): | 1.6 dB |
| Isolation (dB): | 80 dB Min |
| Isolation - Typ (dB): | 80 dB |
| Switching Speed: | 15 ns Max (Rise/Fall), 100 ns Max (Delay On/Off) |
| Switching Speed - Typ: | 15 ns |
| Rise/Fall Time: | 15 ns Max |
| Delay On/Off: | 100 ns Max |
| VSWR In/Out: | 1.85:1 Max |
| Input Power: | 20 dBm CW Max |
| Survival Power: | 1 W CW, 10 W Peak 1 µs |
| Power Supply: | +5 VDC @ 200 mA Max, -5 VDC @ 200 mA Max |
| Control Signal: | Individual Control - TTL Logic, "0" = On & "1" = Off |
| Power & Control Connector: | 9 Pin Micro-D (MDM-9PSP or equalivent) |
| Connectors: | SMA Female |
| Size: | 2.5" x 2.0" x 0752" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
