| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Configuration: | SP4T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency (GHz): | 0.08 to 1 |
|---|
| Frequency Min (GHz): | 0.08 |
|---|
| Frequency Max (GHz): | 1 |
|---|
| Insertion Loss (dB): | 1.2 dB Max |
|---|
| Insertion Loss - Typ (dB): | 1.2 dB |
|---|
| Isolation (dB): | 60 dB Min |
|---|
| Isolation - Typ (dB): | 60 dB |
|---|
| Switching Speed: | 15 ns Max (Rise/Fall),
100 ns Max (Delay On/Off) |
|---|
| Switching Speed - Typ: | 15 ns |
|---|
| Rise/Fall Time: | 15 ns Max |
|---|
| Delay On/Off: | 100 ns Max |
|---|
| VSWR In/Out: | 1.8:1 Max |
|---|
| Input Power: | 20 dBm CW Max |
|---|
| Survival Power: | 1 W CW or 10 W Peak (1 µs PW) |
|---|
| Power Supply: | +5 VDC @ 200 mA Max,
-5 VDC @ 100 mA Max |
|---|
| Control Signal: | Individual Control - TTL Logic, "0" = On & "1" = Off |
|---|
| Power & Control Connector: | 9 Pin Micro "D" Male, (MDM-9PSP or equivalent),
9 Pin Micro "D" Female Mating Connector, (MDM-PSSP or equivalent) to be supplied |
|---|
| Connectors: | SMA Female |
|---|

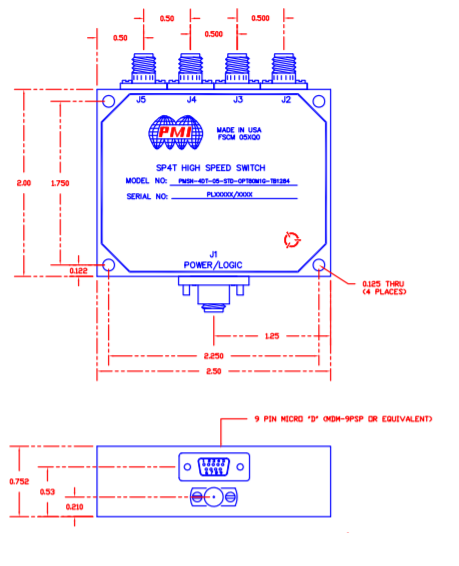

| Size: | 2.5" x 2.0" x 0.752" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
