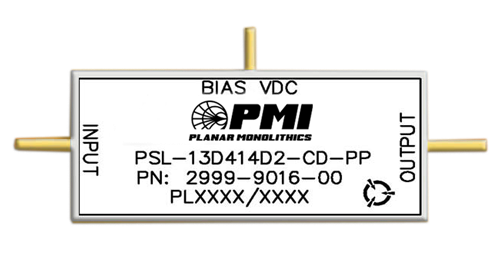

PSL-13D414D2-CD-PP

Switch Limiter

Buy Now

PMI Model Number PSL-13D414D2-CD-PP is a switch limiter operating in the 13.4 to 14.2 GHz frequency range.  A +10 mA bias will turn the switch off while a -10 mA bias will turn the switch into the insertion loss state.  The integrated limiter will handle 20 W having a 2 µs pulse width.

Product Specifications

General Parameters:
Item No.: 28
Status: Active
Product Description: PMI Model Number PSL-13D414D2-CD-PP is a switch limiter operating in the 13.4 to 14.2 GHz frequency range. A +10 mA bias will turn the switch off while a -10 mA bias will turn the switch into the insertion loss state. The integrated limiter will handle 20 W having a 2 µs pulse width.
RF Input Power Level: Max Average Power:
10 W (@ Switch)
1 W (@ Limiter)
Max Peak Power:
75 W for 300 ns Pulse Width (@ Switch)
20 W for 2 µs Pulse Width (@ Limiter)
Frequency Range: 13.4 to 14.2 GHz
Insertion Loss: 1.3 dB Max
Isolation: 40 dB minimum (Blanking)
Frequency Min: 13.4 GHz
Frequency Max: 14.2 GHz
Maximum Input Power
(Without Damage):
75 W for 300 ns Pulse Width (At Switch) 20 W for 2 us Pulse Width (At Limiter)
Return Loss: -10 mA Condition: -15 dB Max
Bias Rise/Fall Time: 20 ns Max / 20 ns Max
(Input CW Power < 1dB Compression Point)
Sealing: Hermetic
Environmental Ratings:
Vibration: MIL-STD-202F, Method 204D Cond. B
Temperature: -55 ºC to +100 ºC Operating
-65 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
Vibration: MIL-STD-202F, Method 204D Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
