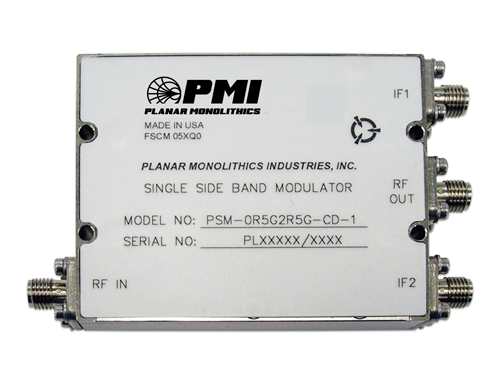

PMI Model No. PSM-0R5G2R5G-CD-1 is a single sideband modulator that operates over the 500MHz to 2.5GHz frequency range. The input P1dB is +5dBm typical and has an IF Modulation Range of DC to 500MHz. The IF Modulation Power Range is +7dBm minimum and +13dBm maximum into 50 ohms. The conversion loss is 13.5dB maximum and this model provides carrier suppression of 23dBc typically. The Quadrature Phase Accuracy is ±10 degrees maximum with a Quadrature Amplitude Accuracy of ±2.0dB maximum. This model is supplied in a package measuring 2.5"L x 2.0"W x 0.5"H.

Product Specifications

General Parameters:
Status: Active
Frequency Min: 0.5 GHz
Frequency Max: 2.5 GHz
Conversion loss: 13.5dBm max. (See Note 1)
IF Modulation Frequency Range: DC to 500MHz
Size: 2.5"L x 2.0"W x 0.5"H
RF Frequency Range: 500 MHz to 2.5 GHz
RF Input VSWR: 2.0:1 typ. (RF=-10dBm, IF Modulation = +10dBm)
RF Output VSWR: 4.0:1 typ. (RF=-10dBm, IF Modulation = +10dBm)
RF Carrier: 500MHz to 2.5GHz
RF Power at 1dB Compression: +5dBm typ. (IF - +10dBm)
IF Modulation Power Range: +7dBm min., +13dBm max. (50 Ohms)
Carrier Suppression: 20dBc min., 23dBc typ.
Carrier - Fundamental IF: 15dBc min.
Carrier ± 2IF, 4IF: 35dBc typ.
Carrier ± 3IF: 7dBc typ
Quadrature Phase Accuracy: ±7.5 deg. typ., ±10 deg. max.
Quadrature Amplitude Accuracy: ±1.5dB typ., ±2.0dB max.
Connectors: SMA Female (4 Places)
Finish: Nickel Plated
Environmental Ratings:
Temperature: -40ºC to +85 ºC
Non-Operating: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
