PSWN-218-2DR-STD-F9120AH-27-OPT5G8G-P28V Preliminary
SP2T Reflective Switch

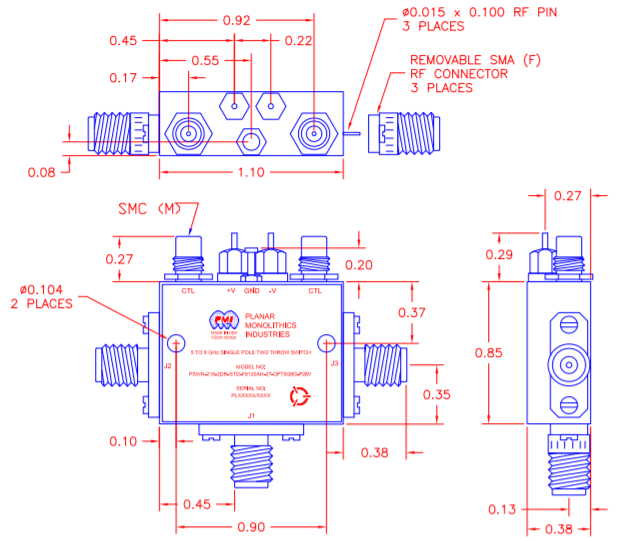

Quantic PMI Model PSWN-218-2DR-STD-F9120AH-27-OPT5G8G-P28V is a reflective, single pole two throw, pin diode switch that operates over the 5 to 8 GHz frequency range with a very low insertion loss, high isolation, integral TTL driver and high-speed switching. Housing measures 1.10" x 0.85" x 0.38" with removable SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP2T |
| Reflective / Absorptive: | Reflective |
| Frequency Range (GHz): | 5 to 8 |
| Frequency Min (GHz): | 5 |
| Frequency Max (GHz): | 8 |
| Insertion Loss (dB): | 3 dB Max |
| Insertion Loss - Typ (dB): | 3 dB |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB |
| Input Power (dBm): | 1 W CW or Peak |
| Survival Power: | 1 W Average, 75 W Peak, (1 µs Max pulse width) |
| Switching Speed: | 50 ns Max |
| Switching Speed (Typ): | 50 ns |
| Power Supply: | +28 VDC @ 250 mA Max |
| Control Signal: | TTL Logic:, "0" = On (Low Loss), "1" = Off (Isolation) |
| VSWR In/Out: | 1.8:1 Typ, 2.0:1 Max |
| Power & Control Connector: | Power: Feedthrus Control: SMC Male |
| Connectors: | SMA Female - removable |
| Size: | 1.1" x 0.85" x 0.38" |
| Finish: | Painted Blue |
| Weight: | 0.75 oz |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Storage): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond B |
| Shock: | MIL-STD-202F, Method 213B Cond B |
| Vibration: | MIL-STD-202F, Method 204D Cond B |
| Altitude: | MIL-STD-202F, Method 105C Cond B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond A |
