PXS-100M18G-65-T-SFF Active
High Speed Absorptive Transfer Switch
Additional Documents

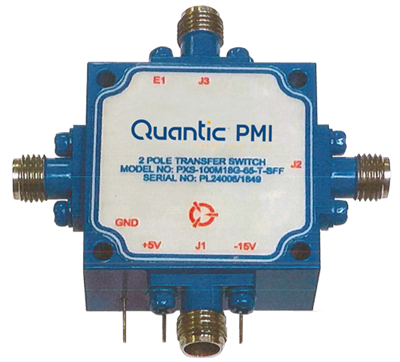

Quantic PMI Model PXS-100M18G-65-T-SFF is an absorptive, high speed, two pole transfer switch capable of switching within 100 ns maximum that has a frequency range of 0.1 to 18 GHz with 65 dB isolation. Housing measures 1.2" x 1.2" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | XFER / DPDT |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.1 to 18 |
| Frequency Min (GHz): | 0.1 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3.1 dB Max |
| Isolation (dB): | 65 dB Min |
| Switching Speed: | 100 ns Max |
| Input Power: | 27 dBm (0.5 W) Max |
| Input VSWR: | 2.0:1 Max |
| Impedance: | 50 Ohm |
| Power Supply: | +5 ± 0.5 VDC -15 ± 3 VDC |
| Control: | TTL Logic |
| Power / Control Connector: | Solder Pin |
| Connectors: | SMA Female |
| Size: | 1.2" x 1.2" x 0.5" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
