PXS-12G18G-65-T-SFF *

Buy Now

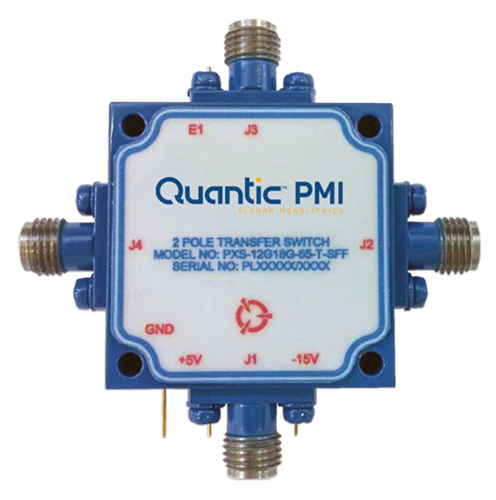

PMI Model No. PXS-12G18G-65-T-SFF is an absorptive, high speed, two pole transfer switch capable of switching within 100 ns max. The frequency range is 12.0 to 18.0 GHz. This switch has 65 dB isolation.

Product Specifications

General Parameters:
Status: Active
Frequency: 12.0 to 18.0 GHz
Frequency Min: 12 GHz
Frequency Max: 18 GHz
Insertion Loss (Typ): 3.0 dB max
Isolation (Typ): 65 dB min
Insertion Loss: 3.0 dB max - Measured 2.65 dB
Isolation: 65 dB min - Measured 77.0 dB
Reflective / Absorptive: Absorptive
Switching Speed (Typ): 100 nsec
Configuration: XFER / DPDT
Input Power: +27 dBm (0.5 Watt) max
VSWR In/Out: 2.0:1 max - Measured 1.93:1
Switching Speed: 100 ns max - Measured 60 ns
Impedance: 50 Ohms
Control Signal: Solder Pin, TTL Logic
Power Supply: +5 VDC - Measured 45 mA, -15 VDC (±3V) - Measured 73 mA
Connectors: SMA(F)
Finish: Painted Blue
Environmental Ratings:
Operating Temperature: -55 to +85 ºC
Non-Operating Temperature: -65ºC to +125ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
SourceIn StockPurchase
