PXS-1G18G-65-T-SFF * Active
High Speed Two Pole Transfer Switch
Buy Now
Additional Documents
- Product Feature
- Test Report - 3/1/17
- S-Parameters
- PL61249 - Unit Data
- PL61250 - Unit Data
- PL61251 - Unit Data
- PL61252 - Unit Data
- PL61253 - Unit Data
- PL61256 - Unit Data
- PL61257 - Unit Data
- PL61258 - Unit Data
- PL82034 - Unit Data
- PL82035 - Unit Data
- PL82036 - Unit Data
- PL82037 - Unit Data
- PL82038 - Unit Data
- PL82039 - Unit Data
- PL82040 - Unit Data
- PL82041 - Unit Data
- PL82042 - Unit Data
- PL82043 - Unit Data
- PL82044 - Unit Data
- PL82045 - Unit Data

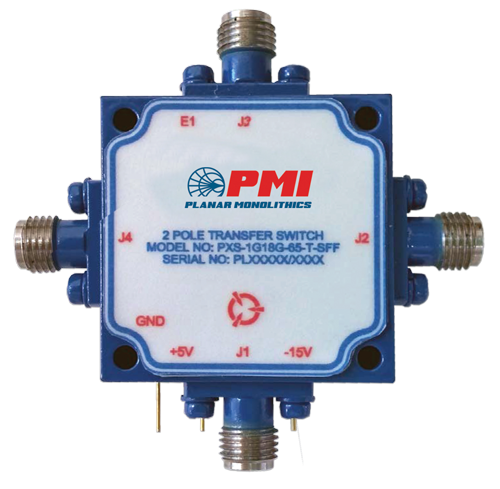

Quantic PMI Model PXS-1G18G-65-T-SFF is an absorptive, high speed, two pole, transfer switch capable of switching within 100 ns maximum that has a frequency range of 1 to 18 GHz with 65 dB isolation. Housing size is 1.2" x 1.2" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | XFER / DPDT |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 1 to 18 |
| Frequency Min (GHz): | 1 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3.1 dB Max |
| Insertion Loss - Typ (dB): | 3.1 dB Max |
| Isolation (dB): | 65 dB Min |
| Isolation - Typ (dB): | 65 dB Min - Measured 70.2 dB |
| Switching Speed: | 100 ns Max |
| Switching Speed - Typ: | 100 ns |
| Input Power: | 27 dBm (0.5 W) Max |
| VSWR In/Out: | 2.0:1 Max - Measured 1.78:1 |
| Impedance: | 50 Ohm |
| Power Supply: | +5 ± 0.5 VDC -15 ± 3 VDC |
| Control Signal: | Solder Pin, TTL Logic |
| Connectors: | SMA Female |
| Size: | 1.2" x 1.2" x 0.5" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
