PXS-2G18G-60-SFF Preliminary
Pin Diode Transfer Switch
Quantic PMI Model PXS-2G18G-60-SFF is a pin diode transfer switch that operates over the 2 to 18 GHz frequency range that has 60 dB minimum of isolation, maximum insertion loss of 3 dB and a switching speed of 100 ns maximum. This model incorporates a TTL compatible driver for easy system integration. Housing size is 1.0" x 1.0" x 0.5" with SMA female connectors. Hermetically sealed units are available as an option.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | XFER / DPDT |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 2 to 18 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3 dB Max |
| Insertion Loss - Typ (dB): | 3 dB Max |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB Min |
| Switching Speed: | 100 ns Max |
| Switching Speed - Typ: | 100 ns |
| Input Power: | 20 dBm CW Max |
| VSWR In/Out: | 1.9:1 Max |
| Power Supply: | ±12 VDC @ 75 mA Nom |
| Control Signal: | Two Line TTL |
| Power / Control Connector: | EMI Filtered Solder Pins |
| Connectors: | SMA Female |

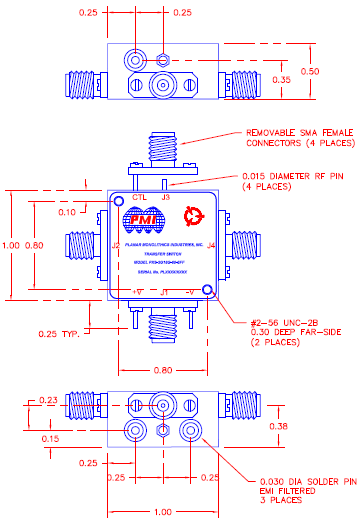

| Size: | 1.0" x 1.0" x 0.5" |
| Finish: | Painted Blue |
| Weight: | 1.4 oz Typ |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -45 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
| Fungus: | MIL-STD-810C, Method 508.2 |
