PXS-2G4G-75-T-SFF * Active
High Speed Two Pole Transfer Switch

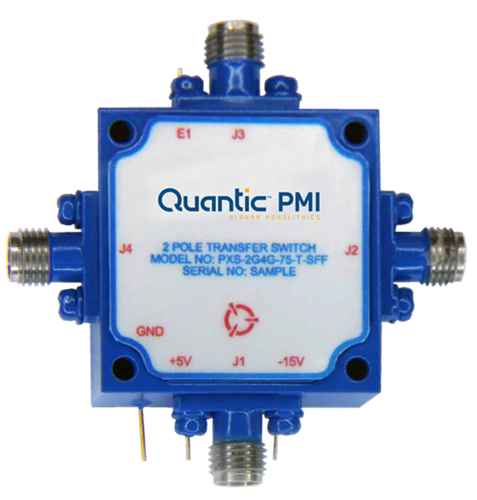

Quantic PMI Model PXS-2G4G-75-T-SFF is an absorptive, high speed, two pole transfer switch capable of switching within 100 ns maximum that has a frequency range of 2 to 4 GHz with 75 dB isolation. Housing size is 1.2" x 1.2" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | XFER / DPDT |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 2 to 4 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 4 |
| Insertion Loss (dB): | 1.2 dB Max |
| Insertion Loss - Typ (dB): | 1.2 dB Max |
| Isolation (dB): | 75 dB Min |
| Isolation - Typ (dB): | 75 dB Min - Measured 98.14 dB |
| Switching Speed: | 100 ns Max |
| Switching Speed - Typ: | 100 ns |
| Input Power: | 30 dBm (1 W) Max |
| VSWR In/Out: | 1.6:1 Max - Measured 1.34:1 |
| Impedance: | 50 Ohm |
| Power Supply: | +5 ± 0.5 VDC -15 ± 3 VDC |
| Control Signal: | Solder Pin, TTL Logic |
| Connectors: | SMA Female |
| Size: | 1.2" x 1.2" x 0.5" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
