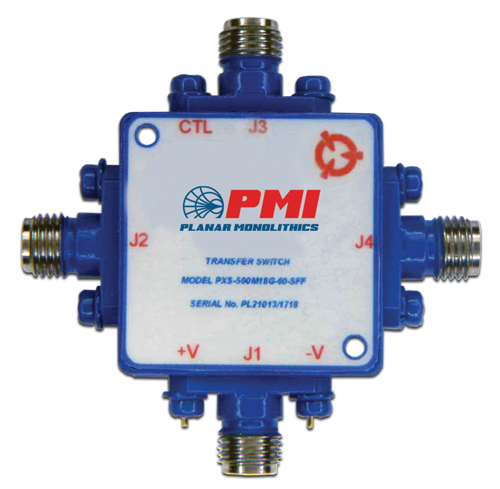

PXS-500M18G-60-512-SFF Preliminary
Pin Diode Transfer Switch
PMI model PXS-500M18G-60-512-SFF is a 0.5 to 18 GHz pin diode transfer switch that has 60 dB isolation, maximum insertion loss of 3 dB, and a maximum switching speed of 100 ns. This model incorporates a TTL compatible driver for easy system integration. Housing size is 1.0" x 1.0" x 0.5" with SMA female connectors.
Same RF performance as PXS-500M18G-60-SFF but with different supply voltage.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | XFER / DPDT |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3 dB Max |
| Isolation (dB): | 60 dB Min |
| Switching Speed: | 100 ns Max |
| Input Power: | 20 dBm CW Max |
| VSWR In/Out: | 1.9:1 Max |
| Power Supply: | +5 VDC -12 VDC |
| Control Signal: | Two Line TTL |
| Power / Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.0" x 1.0" x 0.5" |
| Weight: | 1.4 oz |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -45 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. B |
| Vibration: | MIL-STD-202, Method 204 Cond. B |
| Altitude: | MIL-STD-202, Method 105 Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107 Cond. A |
