PXS-6G18G-60-T-SFF-SP Active
High Speed Absorptive Transfer Switch
Additional Documents
- Product Feature
- Test Report - 8/16/21
- PL32161 - Unit Data
- PL32162 - Unit Data
- PL32163 - Unit Data
- PL32164 - Unit Data
- PL32165 - Unit Data
- PL32166 - Unit Data
- PL32548 - Unit Data
- PL32549 - Unit Dat
- PL32550 - Unit Data
- PL32551 - Unit Data
- PL32553 - Unit Data
- PL32554 - Unit Data
- PL32555 - Unit Data
- PL32556 - Unit Data
- PL32557 - Unit Data
- PL32558 - Unit Data
- PL32559 - Unit Data
- PL32560 - Unit Data
- PL32561 - Unit Data
- PL32562 - Unit Data
- PL32563 - Unit Data
- PL32564 - Unit Data
- PL32565 - Unit Data
- PL32567 - Unit Data
- PL32568 - Unit Data
- PL32569 - Unit Data
- PL33465 - Unit Data

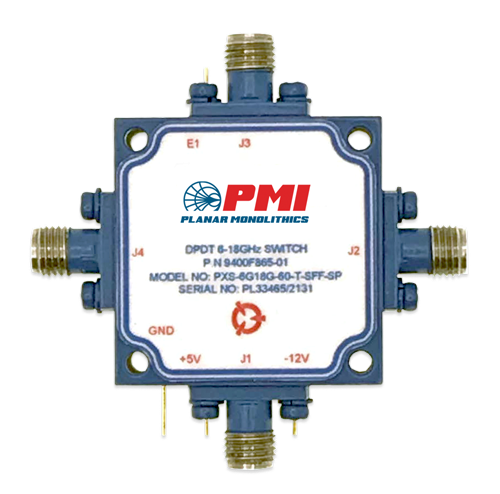

PMI Model PXS-6G18G-60-T-SFF-SP is an absorptive, high speed, two pole transfer switch capable of switching within 70 ns maximum that has a frequency range of 6 to 18 GHz with >60 dB isolation. Housing measures 1.2" x 1.2" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 6 to 18 |
| Frequency Min (GHz): | 6 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3.5 dB Max |
| Insertion Loss Ripple: | ±0.75 dB Max |
| Isolation (dB): | 60 dB Min |
| Switching Speed: | 70 ns Max (50% TTL to 10%/90% RF) |
| Switching Rate PRF: | 1 MHz |
| Rise/Fall Time: | 70 ns (10% / 90% RF) |
| Input Power: | 27 dBm (0.5 W) Max |
| VSWR In/Out: | 2.0:1 Max |
| Video Transients: | 50 mV P-P @ 350 MHz BW |
| Impedance: | 50 Ohm |
| Power Supply: | +5 VDC ± 5% @ 120 mA Max (VDC + CTL Lines), -12 VDC ± 5% @ 120 mA Max |
| Control Signal: | TTL Logic |
| Power / Control Connector: | Solder Pin |
| Connectors: | SMA Female |
| Size: | 1.2" x 1.2" x 0.5" |
| Sealing: | Conductive Hard Epoxy Seal, Unless Otherwise Specified |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -45 ºC to +85 ºC |
| Non-Operating Temperature: | -54 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Salt Fog: | MIL-STD-202F, Method 101D-EST Cond. B |
| Fungus: | MIL-STD-810F, Method 508.5 |
| Thermal Shock: | MIL-STD-202F, Method 101D Cond. A |
| EMI/EMC: | MIL-STD-461E |
