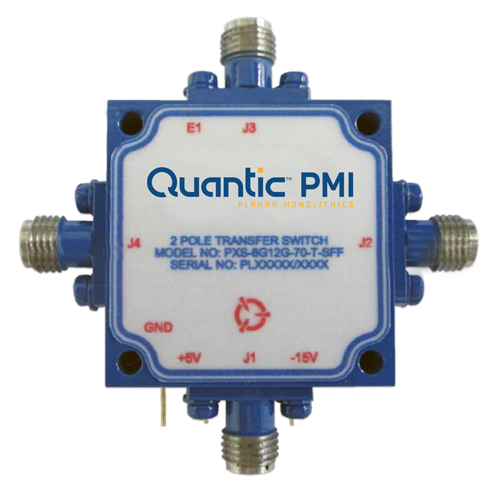

PXS-8G12G-70-T-SFF * Active
High Speed Two Pole Transfer Switch
Quantic PMI Model PXS-8G12G-70-T-SFF is an absorptive, high speed, two pole transfer switch capable of switching within 100 ns maximum that has a frequency range of 8 to 12 GHz with 70 dB isolation. Housing size is 1.2" x 1.2" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | XFER / DPDT |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 8 to 12 |
| Frequency Min (GHz): | 8 |
| Frequency Max (GHz): | 12 |
| Insertion Loss (dB): | 2.2 dB Max |
| Insertion Loss - Typ (dB): | 2.2 dB Max |
| Isolation (dB): | 70 dB Min |
| Isolation - Typ (dB): | 70 dB Min - Measured 85.4 dB |
| Switching Speed: | 100 ns Max |
| Switching Speed - Typ: | 100 ns |
| Input Power: | 27 dBm (0.5 W) Max |
| VSWR In/Out: | 1.8:1 Max - Measured 1.5:1 |
| Impedance: | 50 Ohm |
| Control Signal: | Solder Pin TTL Logic |
| Power / Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.2" x 1.2" x 0.5" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
