QC-7G18G-SFF-30W *

90° Hybrid Coupler

Buy Now

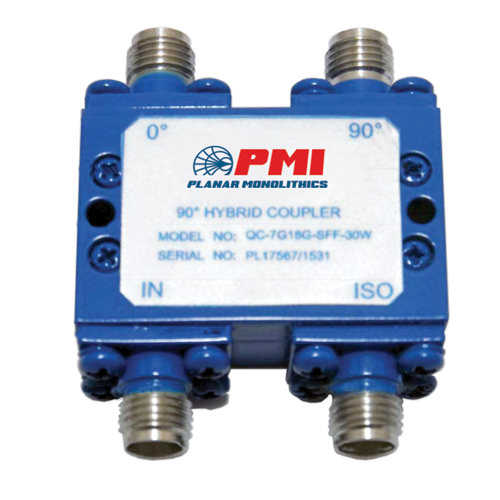

PMI Model No. QC-7G18G-SFF-30W is a 7.0 to 18.0 GHz, 90° hybrid coupler. This model offers a phase balance of ±5° maximum and low insertion loss of 1 dB maximum.  Unit size is 0.79" x 1.22" x 0.43" and has SMA (F) connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Min: 7 GHz
Frequency Max: 18 GHz
Amplitude Balance: <±0.5 dB - Measured ±0.48 dB
Phase Balance: <±5° - Measured ±1.72°
Isolation: 18 dB min - Measured 20.14 dB
Frequency Range: 7.0 to 18.0 GHz
RF Input Power Handling: Average =30 Watts, Peak =1 KW
VSWR: <1.40:1 - Measured 1.36:1
Size: 0.79" x 1.22" x 0.43"
Insertion Loss: <1.3 dB - Measured 0.83 dB
Nominal Split: 3.01 dB
Connectors (In/Out): SMA (F)
Finish: Painted Blue
Impedance: 50 Ohms
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
