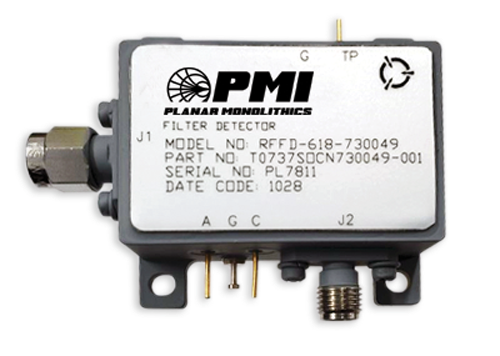

RFFD-618-730049 Active
Integrated Filter / Detector Assembly for Airborne Applications
Buy Now
PMI Model RFFD-618-730049 is a 6 to 18 GHz low pass filter combined with a Schottky Biased Detector including a reverse voltage protection diode. A duplicate detector and protection diode is included for DC offset voltage compensation. Housing size is 1.6" x 1.59" x 0.6" with SMA female (RF IN) and SMA male (Video Out) field replaceable connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Product Description: | PMI Model RFFD-618-730049 is a 6 to 18 GHz low pass filter combined with a Schottky Biased Detector including a reverse voltage protection diode. A duplicate detector and protection diode is included for DC offset voltage compensation. Housing size is 1.6" x 1.59" x 0.6" with SMA female (RF IN) and SMA male (Video Out) field replaceable connectors. |
| Item No.: | 79 |
| Filter Rejection: | 23 dB Min (20 to 26 GHz) |
| Return Loss: | -10 dB |
| Voltage Sensitivity: | 80 to 140 mV |
| Maximum Input Power: | 7 dBm Operational, 20 dBm Survival |
| Operating Dynamic Range: | -23 to 7 dBm |
| Barrier Potential: | 225 to 270 mV with 100 µA bias to +25 °C |
| Frequency Flatness: | ±0.8 dB with 1 to 2 dB Typ Slope |
| Diode Voltage Protection: | 1 V Max @ 30 mA |
| Tracking Detector-Balance: | ±20 mV Max Over Operating Temperature |
| Connectors: | RF Input: SMA Male - Field Replaceable Video Output: SMA Female - Field Replaceable DC Connections: Feed-Thru Solder Pins |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -54 °C to +110 °C (Operating) -65 °C to +110 °C (Storage) |
| Humidity: | MIL-STD-202, Method 106 |
| Shock: | MIL-STD-202, Method 213 Cond. A |
| Altitude: | MIL-STD-810C, Method 504.1 |
| Vibration: | MIL-STD-810C, Category B2 |
| Thermal Shock: | MIL-STD-202, Method 170 Cond. B |
