SFB-025-8DR-HPR4W-AL2 Preliminary

7-Channel Switch Filter Bank

SFB-025-8DR-HPR4W-AL2
Product Feature

Quantic PMI Model SFB-025-8DR-HPR4W-AL2 is a 7 channel switch filter bank that has seven filter channels that cover the frequency range of 0.19z to 2.01 GHz. This model includes an integral TTL driver and offers fast switching speeds of <500 ns.  Package size is 4.75" x 5.0" x 0.66" with a 15 Pin Micro-D connector for power/control and SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
No of Filter Channels: 7
Operating Frequency (GHz): 0.19 to 2.01
Frequency Min (GHz): 0.19
Frequency Max (GHz): 2.01
Center Frequency (GHz): Channel 1: 0.235 GHz
Channel 2: 0.15 GHz
Channel 3: 0.15 GHz
Channel 4: 0.23 GHz:
Channel 5: 0.32 GHz
Channel 6: 1.32 GHz
Channel 7: 1.8 GHz
3 dB Bandwidth (GHz): Channel 1: 0.09 GHz
Channel 2: 0.335 GHz
Channel 3: 0.465 GHz
Channel 4: 0.635 GHz:
Channel 5: 0.89 GHz
Channel 6: 0.58 GHz
Channel 7: 0.42 GHz
Isolation (dB): 60 dB Min
Insertion Loss (dB): 5 dB
Switching Speed: 500 ns
Control Type: TTL
DC Voltage: +5 VDC / -15 VDC
DC Current (mA): 500 mA / 100 mA
VSWR: 2.0:1 Max
RF Power Rating: 36 dBm CW Max
Rejection: Channel 1: 50 dB Min @ 0.1 & 0.4 GHz
Channel 2: -50 dB Min @ 0.16 & 0.52 GHz
Channel 3: -50 dB Min @ 0.23 & 0.78 GHz
Channel 4: -50 dB Min @ 0.325 & 1.04 GHz:
Channel 5: -50 dB Min @ 0.455 & 1.46 GHz
Channel 6: -50 dB Min @ 0.645 & 1.06 GHz
Channel 7: -50 dB Min @ 0.455 & 1.46 GHz
Connectors: RF: SMA Female
Power & Control: 15 Pin Micro-D

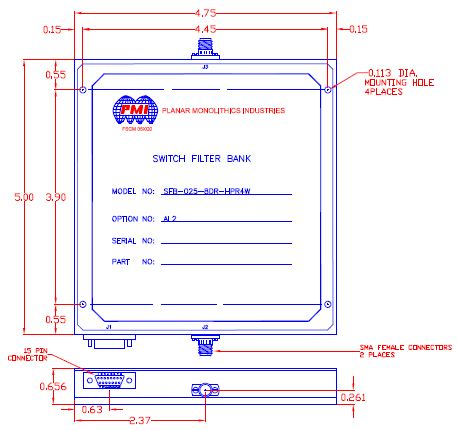

Size: 4.75" x 5.0" x 0.66"
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
Non-Operating Temperature: -40 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
