| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| No of Filter Channels: | 2 |
|---|
| Operating Frequency (GHz): | 1.8 to 3 |
|---|
| Frequency Min (GHz): | 1.8 |
|---|
| Frequency Max (GHz): | 3 |
|---|
| Center Frequency (GHz): | Channel 1: 2.035 GHz
Channel 2: 2.6 GHz |
|---|
| Passband Frequency (GHz): | Channel 1: 1.77 to 2.3 GHz
Channel 2: 2.3 to 3 GHz |
|---|
| Isolation (dB): | 60 dB Min |
|---|
| Insertion Loss (dB): | 3.5 dB |
|---|
| Switching Speed: | 500 ns |
|---|
| Control Type: | TTL |
|---|
| DC Voltage: | +15 VDC / -15 VDC |
|---|
| DC Current (mA): | 40 mA / 100 mA |
|---|
| VSWR: | 2.0:1 Max |
|---|
| RF Power Rating: | 30 dBm CW Max |
|---|
| Rejection: | Channel 1: -60 dB Min @ 1.25 GHz
-60 dB Min @ 2.65 GHz
-65 dB Min @ 2.7 to 6 GHz
-65 dB Min @ DC to 1.15 GHz
Channel 2: -60 dB Min @ 1.7 GHz
-60 dB Min @ 3.4 GHz
-65 dB Min @ 3.4 to 6 GHz
-65 dB Min @ DC to 1.15 GHz |
|---|
| Connectors: | SMA Female |
|---|

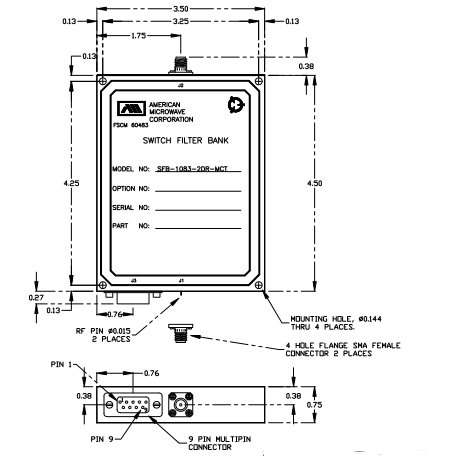

| Size: | 4.5" x 3.5" x 0.75" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +85 °C |
|---|
| Non-Operating Temperature: | -40 ºC to +100 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
