SFB-13-6P-MCT Preliminary

Product Feature

PMI Model No. SFB-13-6P-MCT is a a six channel switch filter bank. This model has six filter channels that cover the frequency range of 1.38GHz to 2.62GHz. This model includes an integral TTL driver and offers fast switching speeds of less than 500nsec.

Channel 1 Specifications:
Channel 1Center Frequency1.48GHz
Channel 1 -0.5dB Bandwidth240MHz
Cannel 1 Rejection

-60dB min. @ 1200MHz and 1800MHz

-65dB min. @ DC to 1000MHz

-65dB min. @ 2100 to 6000MHz

Channel 2 Specifications:
Channel 2 Center Frequency1.7GHz
Channel 2 -0.5dB Bandwidth240MHz
Channel 2 Rejection

-60dB min. @ 1400MHz and 2000MHz

-65dB min. @ DC to 1100MHz

-65dB min. @ 2300 to 6000MHz

Channel 3 Specifications:
Channel 3 Center Frequency1.9GHz
Channel 3 -0.5dB Bandwidth240MHz
Channel 3 Rejection

-60dB min. @ 1600MHz and 2200MHz

-65dB min. @ DC to 1300MHz

-65dB min. @ 2500 to 6000MHz

Channel 4 Specifications:
Channel 4 Center Frequency2.1GHz
Channel 4 -0.5dB Bandwidth240MHz
Channel 4 Rejection

-60dB min. @ 1800MHz and 2400MHz

-65dB min. @ DC to 1500MHz

-65dB min. @ 2700 to 6000MHz

Channel 5 Specifications:
Channel 5 Center Frequency2.3GHz
Channel 5 -0.5dB Bandwidth240MHz
Channel 4 Rejection

-60dB min. @ 2000MHz and 2600MHz

-65dB min. @ DC to 1700MHz

-65dB min. @ 2900 to 6000MHz

Channel 6 Specifications:
Channel 6 Center Frequency2.5GHz
Channel 6 -0.5dB Bandwidth240MHz
Channel 6 Rejection

-60dB min. @ 2200MHz and 2800MHz

-65dB min. @ DC to 1900MHz

-65dB min. @ 3100 to 6000MHz

Product Specifications

General Parameters:
Status: Preliminary
No of Filter Channels: 6
Frequency Min: 1.38 GHz
Frequency Max: 2.62 GHz
Insertion Loss: 3.3 dB
Switching Speed: 500 ns
Control Type: TTL
DC Voltage: 15, -15
DC Current (mA): 700, 50

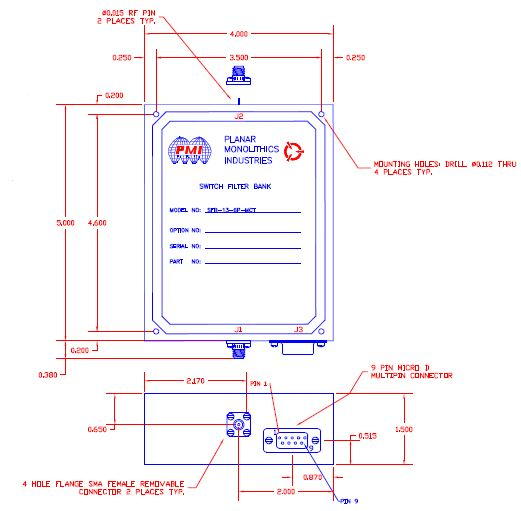

Size: 5.0" x 4.0" x 1.5"
Isolation: 60dB min.
VSWR: 2.0:1 max.
RF Power Rating: +27dBm CW max.
Connectors: SMA(F)
Environmental Ratings:
Operating Temperature: -40ºC to +85 ºC
Non-Operating Temperature: -40 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
