SFB-218-SP6DR-HPM

Model SFB-218-SP6DR-HPM is a six channel switch filter bank. This model has six filter channels that cover the frequency range of 2.0 GHz to 18.5 GHz. This model includes an integral TTL driver and offers fast switching speeds of less than 1 µs.

Channel 1 Specifications:
Channel 1 Center Frequency2.5 GHz
Channel 1 -3 dB Bandwidth1 GHz
Cannel 1 Rejection

-40 dB Min @ 300 kHz to 1.6 GHz

-40 dB Min @ 9.1 to 18.5 GHz

-60 dB Min @ 3.98 to 9.1 GHz

Channel 2 Specifications:
Channel 2 Center Frequency4.0 GHz
Channel 2 -3 dB Bandwidth2.0 GHz
Channel 2 Rejection

-40 dB Min @ 300 kHz to 2.6 GHz

-40 dB Min @ 15.1 to 18.5 GHz

-60 dB Min @ 5.9 to 16.1 GHz

Channel 3 Specifications:
Channel 3 Center Frequency6.5 GHz
Channel 3 -3 dB Bandwidth3.0 GHz
Channel 3 Rejection

-40 dB Min @ 300 kHz to 4.1 GHz

-60 dB Min @ 9.9 to 18.5 GHz

Channel 4 Specifications:
Channel 4 Center Frequency9.5 GHz
Channel 4 -3 dB Bandwidth3.0 GHz
Channel 4 Rejection

-40 dB Min @ 300 kHz to 5.6 GHz

-60 dB Min @ 15.9 to 18.5 GHz

Channel 5 Specifications:
Channel 5 Center Frequency12.5 GHz
Channel 5 -3 dB Bandwidth3.0 GHz
Channel 5 Rejection

-40 dB Min @ 300 kHz to 7.1 GHz

Channel 6 Specifications:
Channel 6 Center Frequency16.25 GHz
Channel 6 -3 dB Bandwidth4.5 GHz
Channel 6 Rejection

-40 dB Min @ 300 kHz to 9.4 GHz

Product Specifications

General Parameters:
Status: Active
No of Filter Channels: 6
Full Operating Frequency: 2000 - 18500 MHz
Insertion Loss: 6 dB
Switching Speed: 1 us
Control Type: TTL
DC Voltage: 15, -15
DC Current (mA): 250, 150

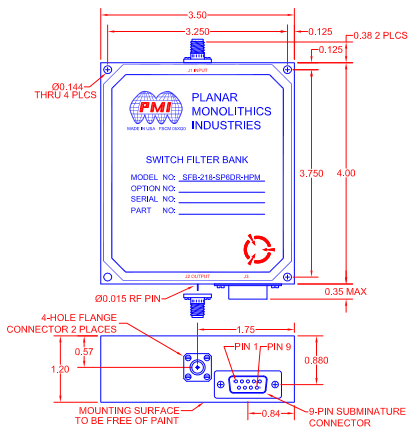

Size: 4.0" x 3.5" x 1.2"
Isolation: 60dB min.
VSWR: 2.0:1 max.
RF Power Rating: +33 dBm CW Max
Connectors: SMA Female
Environmental Ratings:
Operating Temperature: -40 ºC to +85 ºC
Non-Operating Temperature: -40 ºC to +100 ºC
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
