SFB-4G18G-5-CD-SFF-SP3T Active
3 Channel Switch Filter Bank
Additional Documents
- Product Feature
- Test Data @ +85Deg C
- Test Data @ +25Deg C
- Test Data @ -55Deg C
- DATA PL5558 +25 DEG C
- DATA PL5558 +85 DEG C
- DATA PL5558 -55 DEG C
- DATA PL5559 +25 DEG C
- DATA PL5559 +85 DEG C
- DATA PL5559 -55 DEG C
- DATA PL5560 +25 DEG C
- DATA PL5560 +85 DEG C
- DATA PL5560 -55 DEG C
- DATA PL5561 +25 DEG C
- DATA PL5561 +85 DEG C
- DATA PL5561 -55 DEG C
- DATA PL5562 +25 DEG C
- DATA PL5562 +85 DEG C
- DATA PL5562 -55 DEG C
- DATA PL5563 +25 DEG C
- DATA PL5563 +85 DEG C
- DATA PL5563 -55 DEG C
- DATA PL5564 +25 DEG C
- DATA PL5564 +85 DEG C
- DATA PL5564 -55 DEG C
- DATA PL5565 +25 DEG C
- DATA PL5565 +85 DEG C
- PF1331 - Unit Data
- PF1332 - Unit Data
- PF1333 - Unit Data
- PF1334 - Unit Data
- PF1335 - Unit Data
- PF1336 - Unit Data

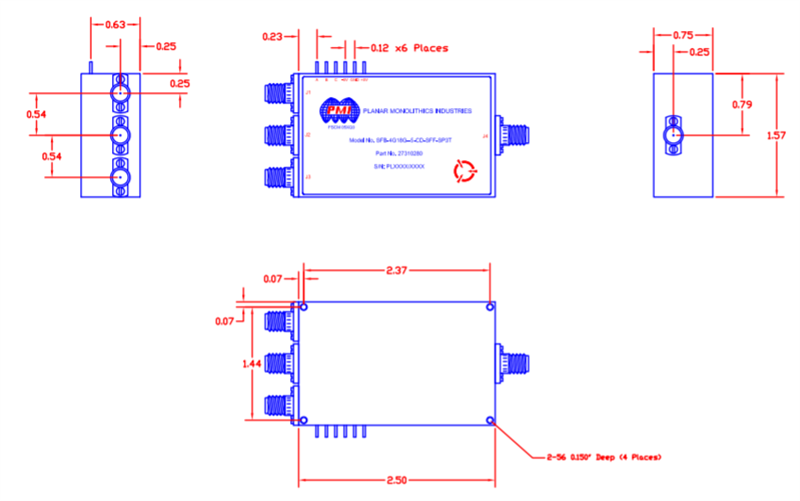

Quantic PMI Model SFB-4G18G-5-CD-SFF-SP3T has 3 switchable input channels which all pass through a common high pass output filter. The high pass filter offers a passband of 5.35 to 18 GHz while rejecting frequencies from DC to 4.94 GHz by >48dBc. This model includes an integral TTL driver and offers fast switching speeds of <50 ns. Phase and Amplitude matching is available. Package size is 2.5" x 1.57" x 0.75" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| No of Filter Channels: | 1 |
| Operating Frequency (GHz): | DC to 4.94 |
| Frequency Min (GHz): | DC |
| Frequency Max (GHz): | 4.94 |
| Isolation (dB): | 70 dB Min |
| Insertion Loss (dB): | 5 dB |
| Switching Speed: | 50 ns |
| Control Type: | TTL |
| DC Voltage: | +5 VDC / -5 VDC |
| DC Current (mA): | 120 mA / 45 mA |
| VSWR: | 2.0:1 Max |
| RF Power Rating: | 30 dBm CW Max |
| Video Leakage: | 10 mV Max |
| Connectors: | SMA Female |
| Size: | 2.5" x 1.57" x 0.75" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +100 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
