SFB-6G18G-2CH-6DB-500NS-SFF Active

2-Channel Switch Filter Bank

SFB-6G18G-2CH-6DB-500NS-SFF
Product Feature

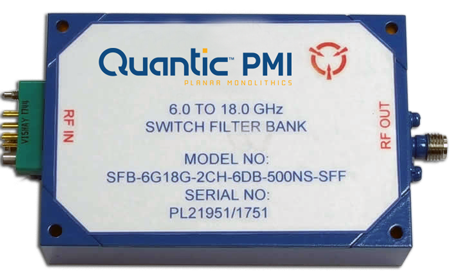

Quantic PMI Model SFB-6G18G-2CH-6DB-500NS-SFF is a 6 to 18 GHz Band Pass Filter with two channels at 6 to 10.4 GHz and at 10.4 to 18 GHz. Both channels have a 6 dB insertion loss, a VSWR of 2.0:1, and >60 dBc isolation, a maximum switching speed is 500 ns and video leakage is <100 mV. Package size is 2.75" x 1.75" x 1.06" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
No of Filter Channels: 2
Operating Frequency (GHz): 6 to 18 GHz
Frequency Min (GHz): 6
Frequency Max (GHz): 18
Isolation (dB): 60 dBc Min
Insertion Loss (dB): 6 dB
Switching Speed: 500 ns
Control Type: TTL
DC Voltage: +5 VDC / -5 VDC
DC Current (mA): 100 mA / 50 mA
VSWR: 2.0:1 Max
Video Leakage: 100 mV Max (In 100 MHz Bandwidth)
Connectors: SMA Female
Size: 2.75" x 1.75" x 1.06"
Finish: Painted Blue Bottom Side Unpainted (Gold Plated)
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -0 ºC to +65 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
