| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| No of Filter Channels: | 2 |
|---|
| Operating Frequency (GHz): | 8 to 18 |
|---|
| Frequency Min (GHz): | 8 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Center Frequency (GHz): | 9, 7 GHz |
|---|
| Isolation (dB): | 40 dB Min |
|---|
| Insertion Loss (dB): | Bypass Path: 2.5 dB,
Notch Filter Path: 2.8 dB |
|---|
| Switching Speed: | 1 µs |
|---|
| Control Type: | TTL |
|---|
| DC Voltage: | +5 VDC / -10 VDC |
|---|
| DC Current (mA): | 70 mA / 100 mA |
|---|
| VSWR: | 2.0:1 Max |
|---|
| RF Power Rating: | 20 dBm CW Max |
|---|
| Rejection: | -35 dB Min @ 9.5 to 9.9 GHz (Notch Filter Path) |
|---|
| Connectors: | SMA Female |
|---|

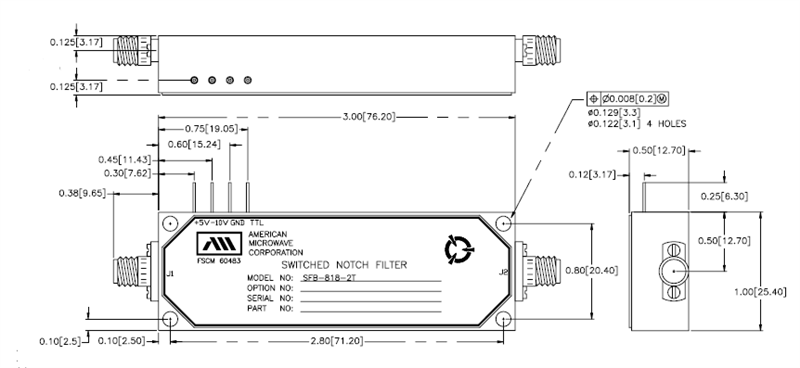

| Size: | 3.0" x 1.0" x 0.5" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +85 °C |
|---|
| Non-Operating Temperature: | -40 ºC to +100 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
