SFB4T-10G-S/S Preliminary

4-Channel Switch Filter Bank

SFB4T-10G-S/S
Product Feature

Quantic PMI Model SFB4T-10G-S/S is a a 4 channel switch filter bank. This Quantic PMI Model have four filter channels centered at 2.5 GHz, 3.5 GHz, 4.5 GHz and 5.5 GHz respectively. All four channels have a 3 dB bandwidth of 1.366 GHz. This model offers fast switching speeds of <1 µs with an integrated BITE detection circuit is included. Package size is 3.25 " x 2.5" x 0.5"  with 9 Pin Micro-D connector for power/control and SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
No of Filter Channels: 4
Operating Frequency (GHz): DC to 10
Frequency Min (GHz): DC
Frequency Max (GHz): 10
Center Frequency (GHz): Channel 1: 2.5 GHz
Channel 2: 3.5 GHz
Channel 3: 4.5 GHz
Channel 4: 5.5 GHz
3 dB Bandwidth (GHz): 1.366 GHz
Isolation (dB): 60 dB Min
Insertion Loss (dB): 6 dB
Switching Speed: 1 µs
Control Type: TTL
DC Voltage: +5 VDC / -5 VDC
DC Current (mA): 250 mA / 150 mA
VSWR: 2.0:1 Max
RF Power Rating: 33 dBm CW Max
Rejection: Channel 1: -45 dB Min @ 0.451 & 4.549 GHz
-60 dB Min @ 0.25 & 5.232 GHz

Channel 2: -45 dB Min @ 1.451 & 5.549 GHz
-60 dB Min @ 0.7 & 4.89 GHz

Channel 3: -45 dB Min @ 0.2451 & 6.549 GHz
-60 dB Min @ 1.768 & 7.232 GHz

Channel 4: -45 dB Min @ 3.451 & 7.549 GHz
-60 dB Min @ 2.768 & 8.232 GHz
Connectors: RF: SMA Female Power & Control: 9 pin Micro-D

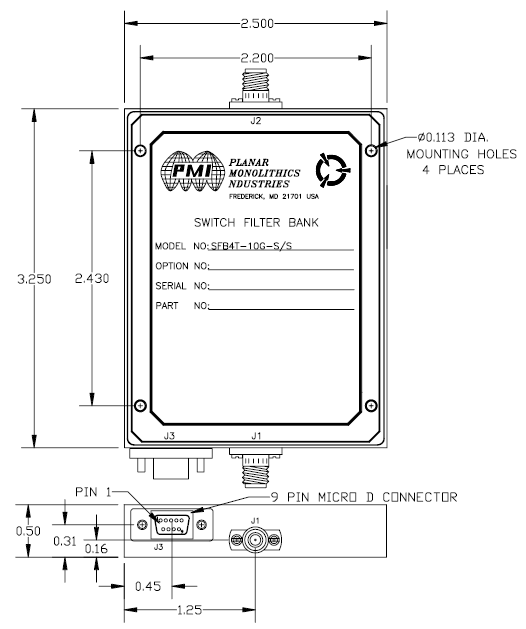

Size: 3.25 " x 2.5" x 0.5"
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
Non-Operating Temperature: -40 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
