| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| No of Filter Channels: | 2 |
|---|
| Operating Frequency (GHz): | 0.725 to 0.875 |
|---|
| Frequency Min (GHz): | 0.725 |
|---|
| Frequency Max (GHz): | 0.875 |
|---|
| Center Frequency (GHz): | Channel 1: 0.75 ± 0.025 GHz
Channel 2: 0.75 ± 0.125 GHz |
|---|
| Isolation (dB): | 60 dB Min |
|---|
| Insertion Loss (dB): | 5 dB |
|---|
| Switching Speed: | 100 ns |
|---|
| Control Type: | TTL |
|---|
| DC Voltage: | +5 VDC / -12 VDC |
|---|
| DC Current (mA): | 150 mA / 150 mA |
|---|
| VSWR: | 1.8:1 Max |
|---|
| RF Power Rating: | 30 dBm CW Max |
|---|
| Rejection: | Channel 1: -60 dB Min @ DC to 0.6 GHz
-60 dB Min @ 0.9 to 20 GHz
Channel 2: -60 dB Min @ DC to 0.45 GHz
-60 dB Min @ 1.05 to 20 GHz |
|---|
| Connectors: | RF: SMA Female
Power & Control: 9 Pin Micro-D |
|---|

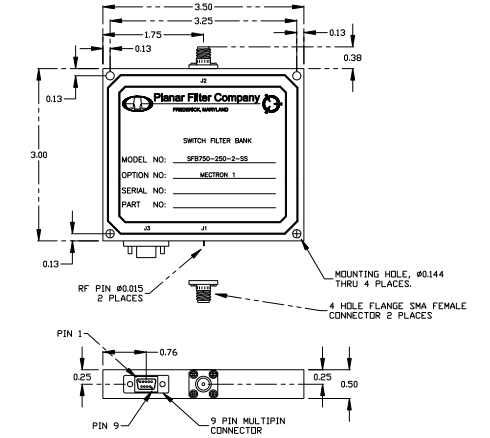

| Size: | 3.5" x 3.5" x 0.5" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +85 °C |
|---|
| Non-Operating Temperature: | -40 ºC to +100 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
