SWN-1170-4DR-SP-OPT1G4G Preliminary
SP4T Reflective Switch

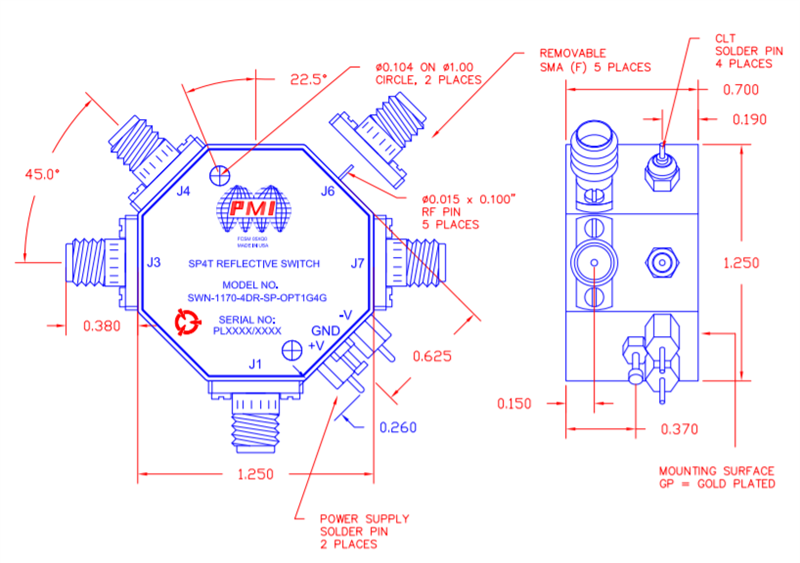

Quantic PMI Model SWN-1170-4DR-SP-OPT1G4G is a Single Pole, Four Throw, Reflective switch designed to operate over the 1 to 4 GHz frequency range. and to maintain low insertion loss, high isolation and fast switching speed. Housing measures 1.25" x 1.25" x 0.7" with removable SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Reflective |
| Frequency (GHz): | 1 to 4 |
| Frequency Min (GHz): | 1 |
| Frequency Max (GHz): | 4 |
| Insertion Loss (dB): | 1.5 dB Typ |
| Insertion Loss - Typ (dB): | 1.5 dB |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB |
| Switching Speed: | 15 ns Max (Rise/Fall), 100 ns Max (Delay On/Off) |
| Switching Speed - Typ: | 100 ns |
| Rise/Fall Time: | 15 ns Max |
| Delay On/Off: | 100 ns Max |
| VSWR In/Out: | 1:5 Typ, 1.8:1 Max |
| Input Power: | 10 dBm CW Max |
| Survival Power: | 1 W CW, 10 W Peak 1 µs |
| Power Supply: | +5 VDC @ 200 mA nom, -5 VDC @ 100 mA nom |
| Control Signal: | TTL Logic, "0" = On & "1" = Off |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.25" x 1.25" x 0.7" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
