SWN-1170-4DT-SP Active
SP4T Absorptive Switch

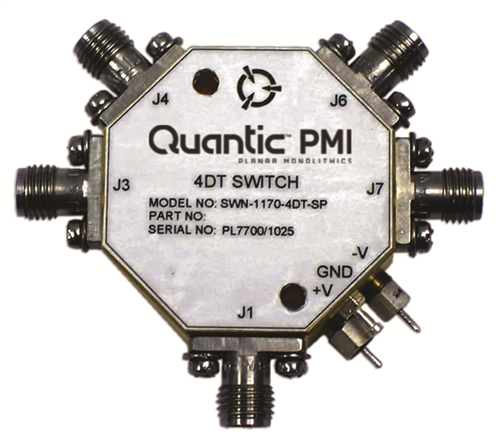

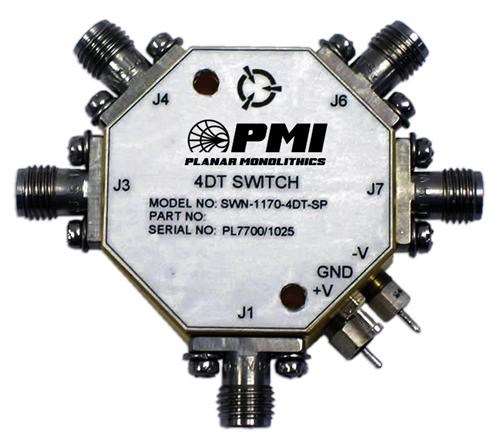

PMI Model No SWN-1170-4DT-SP is a single pole, four throw, absorptive switch designed to operate over the 0.5 to 18 GHz frequency range and to maintain low insertion loss, high isolation and fast switching speed. Supplied with removable 2.92mm female connectors in a radial housing that measures 1.25" dia x 0.7" thick.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3.75 dB Typ |
| Insertion Loss - Typ (dB): | 3.75 dB |
| Isolation (dB): | 70 dB Min |
| Isolation - Typ (dB): | 70 dB |
| Switching Speed: | 15 ns Max (Rise/Fall), 100 ns Max (Delay On/Off) |
| Switching Speed - Typ: | 100 ns |
| Rise/Fall Time: | 15 ns Max |
| Delay On/Off: | 100 ns Max |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 10 dBm CW Max |
| Survival Power: | 1 W CW, 10 W Peak, 1 µs |
| Power Supply: | +5 VDC @ 200 mA nom, -5 VDC @ 100 mA nom |
| Power & Control Connector: | Solder Pins |
| Connectors: | 2.92mm Female |
| Size: | 1.25" x 1.25" x 0.7" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
| Fungus: | MIL-STD-810C, Method 508.2 |
