| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Configuration: | SP6T |
|---|
| Reflective / Absorptive: | Reflective |
|---|
| Frequency (GHz): | 6 to 18 |
|---|
| Frequency Min (GHz): | 6 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Insertion Loss - Typ (dB): | 4.25 dB |
|---|
| Isolation (dB): | 70 dB |
|---|
| Switching Speed: | 10 ns Typ, 15 ns Max (Rise/Fall) |
|---|
| VSWR In/Out: | 1/1/1900 12:01:00 AM |
|---|
| Input Power: | 20 dBm |
|---|
| Survival Power: | 1 W CW, 10 W Peak @ 1 µs pulse width |
|---|
| Control Logic: | TTL Logic: ''0'' = ON ''1'' = OFF |
|---|
| Power Supply: | +5 VDC @ 300 mA Max
-5 VDC @ 100 mA Max |
|---|
| Connectors: | SMA Female - removable |
|---|

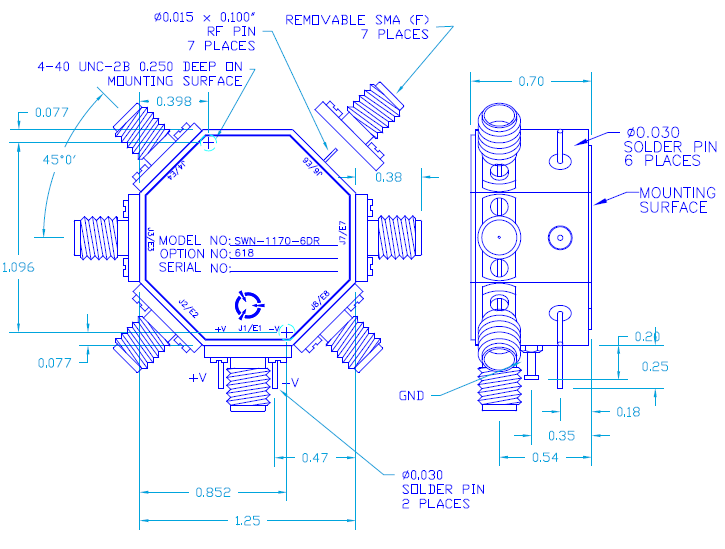

| Size: | 1.096" x 1.25" x 0.70" |
|---|
| Weight: | 1.6 oz |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -65 ºC to +85 ºC |
|---|
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, METHOD 1038 COND. B |
|---|
| Shock: | MIL-STD-202F, METHOD 2138 COND. B |
|---|
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
|---|
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202F, METHOD 107D COND. A |
|---|
