SWN-2181-TRA-OPT0723 Preliminary
Pin Diode Transfer Switch

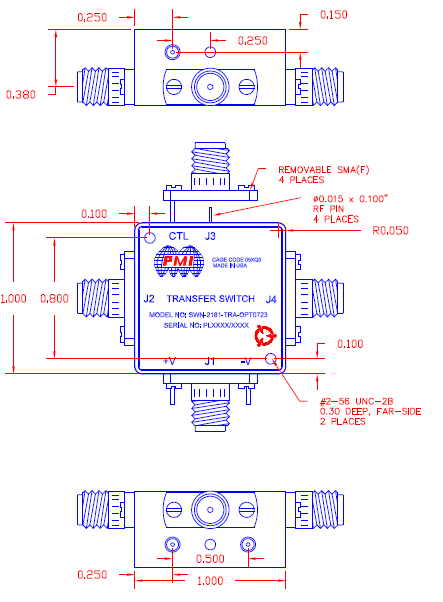

Quantic PMI Model SWN-2181-TRA-OPT0723 is a pin diode transfer switch that operates over the 0.7 to 2.3 GHz frequency range that has 80 dB minimum of isolation, maximum insertion loss of 1.65 dB and a switching speed of 50 ns maximum. This model incorporates a TTL compatible driver for easy system integration. Housing size is 1.0" x 1.0" x 0.5" with removable SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | XFER / DPDT |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.7 to 2.3 |
| Frequency Min (GHz): | 0.7 |
| Frequency Max (GHz): | 2.3 |
| Insertion Loss (dB): | 1.65 dB |
| Insertion Loss - Typ (dB): | 1.65 dB |
| Isolation (dB): | 80 dB |
| Isolation - Typ (dB): | 80 dB |
| Switching Speed: | 15 ns Max (Rise/Fall Time) 50 ns Typ, 100 ns Max (Delay On/Off) |
| Switching Speed - Typ: | 50 ns |
| Input Power: | 10 dBm CW |
| VSWR In/Out: | 2.0:1 Max |
| Survival Power: | 1 W CW, 10 W Peak 1 µs |
| Power Supply: | +5 VDC @ 100 mA Nom, -5 VDC @ 100 mA Nom |
| Control Signal: | TTL Logic |
| Power / Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.0" x 1.0" x 0.5" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond B |
| Shock: | MIL-STD-202F, Method 213B Cond B |
| Vibration: | MIL-STD-202F, Method 204D Cond B |
| Altitude: | MIL-STD-202F, Method 105C Cond B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
